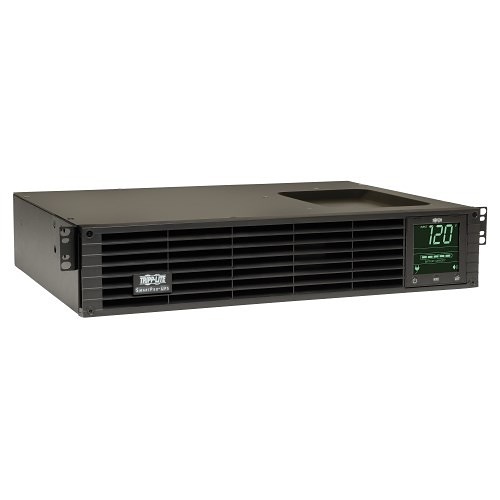

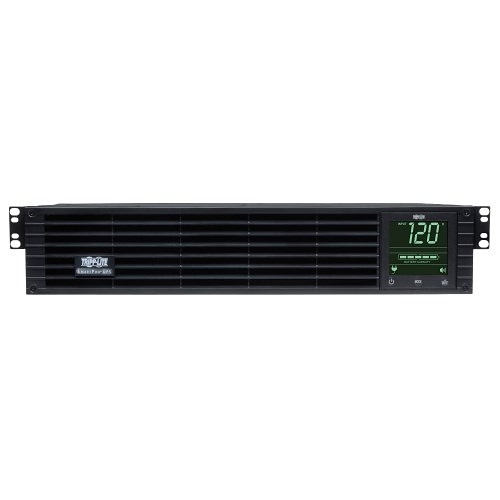

Tripp Lite SMART1000RM2U SmartPro 120V 1KVA 800W Line-Interactive Sine Wave UPS, 2U Rack/tower, Network Card Options, LCD, USB, DB9, Outlets
SMART1000RM2U|TC-SMT10002U
Tripp Lite SMART1000RM2U SmartPro 120V 1KVA 800W Line-Interactive Sine Wave UPS, 2U Rack/tower, Network Card Options, LCD, USB, DB9, Outlets
SMART1000RM2U|TC-SMT10002U
Tripp Lite by Eaton
Tripp Lite SMART1000RM2U SmartPro 120V 1KVA 800W Line-Interactive Sine Wave UPS, 2U Rack/tower, Network Card Options, LCD, USB, DB9, Outlets
SMART1000RM2UÂ |Â TC-SMT10002U
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Main Features
- Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
- Audible alarm signals loss of utility power, overload, low battery and fault conditions

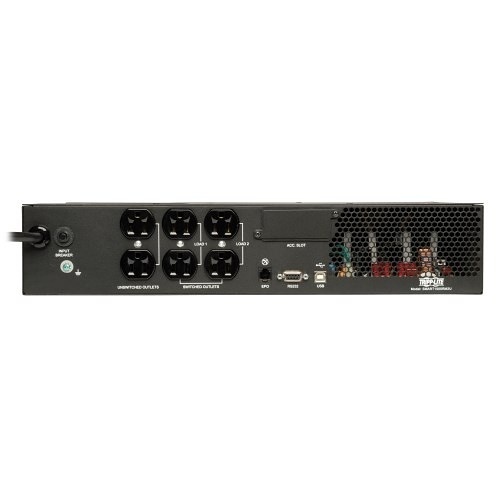

- 6 NEMA 5-15R outlets
- 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input
- 570-joule surge suppression rating
- Supports half load up to 15 min. and full load up to 5.3 min.
- Internal batteries designed for hot-swap field replacement
- 95% line-power efficiency rating saves money in energy costs
- 2 load banks, each with 2 outlets controllable remotely to reboot equipment or shed nonessential loads
- Maintains 120V nominal output over input range of 83V-147V without using battery power
General Information
Name: Tripp Lite SMART1000RM2U SmartPro 120V 1KVA 800W Line-Interactive Sine Wave UPS, 2U Rack/tower, Network Card Options, LCD, USB, DB9, Outlets
Category: Tripp Lite by Eaton, Batteries & Power Supplies, Data Comm & Networking, Power Management, Power Products, UPS, UPS
UPC Code: 037332118806
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SMT10002U Brand Name Tripp Lite by Eaton Manufacturer Tripp Lite by Eaton Manufacturer Part Number SMART1000RM2U Packaged Quantity 1 Product Line SmartPro Product Model SMART1000RM2U Product Name SMART1000RM2U UPS System Product Type Line-interactive UPS Weight (Approximate) (g) 16057.17 Â
-
Backup/Run Time (Full Load) 5.30 Minute Backup/Run Time (Full Load) (Second) 318 Backup/Run Time (Half Load) 15 Minute Backup/Run Time (Half Load) (Second) 900 Hot Swappable Yes Load Capacity (VA) 1000 VA Output Voltage 120V AC Output Voltage (V AC) 120 Receptacle Detail 6 x NEMA 5-15R Receptacle Type NEMA 5-15R Â
-
Battery Chemistry Lead Acid Typical Battery Recharge Time 4-Hour Typical Battery Recharge Time (Second) 14400 Â
-
Output Voltage (V) 120 Â
-
Maximum Operating Temperature 104°F (40°C) Maximum Operating Temperature (°F) 104 Â
-
Alarm Low Battery, On Battery, Overload Network Management SNMP Manageable Â
-
Depth 12.5" Depth (mm) 317.5 Form Factor Rack Mount Height 3.5" Height (mm) 88.9 Rack Height 2U Weight (Approximate) 35.40 lb Width 17.5" Width (mm) 444.5 Â
-
Input Voltage 120V AC Input Voltage (V AC) 120 Plug/Connector Type NEMA 5-15P Waveform Type Sine Wave Â
-
Load Capacity (VA) (W) 1000VA|800W Load Capacity (W) 1000.000 Â
-
Software Included PowerAlert Software Â
-
Limited Warranty 2-Year Â
-
Package Contents - SMART1000RM2U UPS System
- PowerAlert Software CD
- Serial & EPO Cabling
- 4 x Post Rackmount Installation Kit
- Instruction Manual
TAA Compliant Yes Â
