Tripp Lite SMX1500LCD Line Interactive UPS Tower with LCD Display, 900W, 230V 1500VA, C13 Outlets, 2U
Tripp Lite SMX1500LCD Line Interactive UPS Tower with LCD Display, 900W, 230V 1500VA, C13 Outlets, 2U
Tripp Lite SMX1500LCD Line Interactive UPS Tower with LCD Display, 900W, 230V 1500VA, C13 Outlets, 2U
SMX1500LCDÂ |Â TC-SMX1500
Please sign in to view pricing and availability and to add to cart.
Product Overview

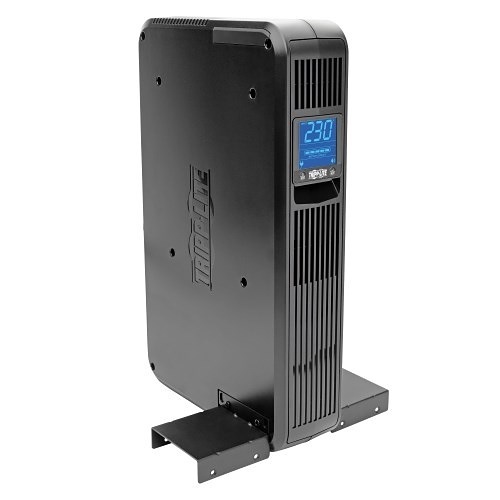

The SMX1500LCD SmartPro 230V 1.5kVA 900W Line-Interactive UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up home/office workstations, point-of-sale applications, VoIP systems and small business networks, the SMX1500LCD switches to battery mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.

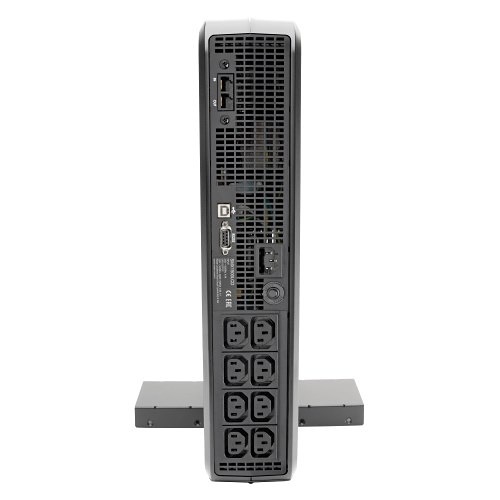

Featuring eight IEC-320-C13 outlets and a C14 inlet that accepts a user-supplied AC power cord, the SMX1500LCD has a user-replaceable internal battery that provides 12 minutes of support at half load and 4.5 minutes at full load. It can also power an entry-level PC up to 60 minutes or a single DVR/VCR component up to three hours. A front-panel LCD screen lets you monitor operating data, such as voltage, battery and overload statuses.
Automatic voltage regulation (AVR) maintains 230V nominal output over an input range of 144V to 282V without using battery power. EMI/RFI noise filtering improves your equipment's performance and prevents damage. An 360-joule surge suppression rating protects your equipment from harmful power surges. USB communications port supports built-in power management and auto-shutdown features of Windows and Mac OS X or full featured monitoring and data-saving auto-shutdown options using Tripp Lite's free PowerAlert monitoring software.
Main Features
- Corrects under- and overvoltages from 144V to 282V
- 8 C13 outlets
- Interactive LCD monitoring screen
- Monitoring of power conditions via POWERALERT12
- 12 min. runtime at half load; 4.5 min. at full load
General Information
Specifications
-
ADI Part Number TC-SMX1500 Brand Name Tripp Lite by Eaton Manufacturer Tripp Lite by Eaton Manufacturer Part Number SMX1500LCD Packaged Quantity 1 Product Line SmartPro Product Model SMX1500LCD Product Name SmartPro SMX1500LCD 1500VA Tower/Rack Mountable Digital UPS Product Type Line-interactive UPS Â
-
Dataline Protection RJ-11 Output Voltage 230V AC Receptacle Detail 8 x IEC 60320 C13 Receptacle Type IEC 60320 C13 Transfer Time 4 ms Â
-
Battery Chemistry Lead Acid Typical Battery Recharge Time 8-Hour Â
-
Output Voltage (V) 230 Â
-
Serial Port Yes Â
-
Depth 10.5" Form Factor Rack Mount, Tower Height 3.5" Rack Height 2U Weight (Approximate) 33.40 lb Width 17.3" Â
-
Input Voltage 220V AC Plug/Connector Type IEC 320 EN 60320 C14 Â
-
Load Capacity (VA) (W) 1500VA|900W Load Capacity (W) 1500.000 Â
-
Software Included PowerAlert Software Â
-
Limited Warranty 2-Year Â
-
Package Contents - SmartPro SMX1500LCD 1500VA Tower/Rack Mountable Digital UPS
- SMX1500LCD Digital UPS System
- USB cable, phone (RJ11) cable and coax cable
- 2 C13-to-C14 jumper cables
- and more below
