Product Overview

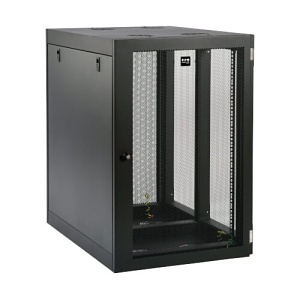

The SRW18UHD SmartRack 18U Heavy-Duty Low-Profile Server-Depth Side-Mount Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 500 pounds.Because the low-profile cabinet mounts sideways, it extends less than 25 inches from the wall while housing equipment up to 32.5 inches deep, including 1U servers, UPS systems, battery packs, network switches and patch panels. The removable front panel and side doors lock securely to help prevent damage, tampering or theft. The top, bottom and sides are vented, which allows air to flow freely and keep equipment cool. Convenient top and bottom ports allow easy cable routing.The SRW18UHD comes fully assembled and ready to mount to the wall. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments.
Main Features
- Maximum load capacity of 500 lbs
- Locking steel cabinet vented at sides, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 18U of 19 in. rack equipment up to 32.5 in. deep
General Information
Specifications
-
ADI Part Number TC-SRW18UHD Brand Name Tripp Lite by Eaton Manufacturer Tripp Lite by Eaton Manufacturer Part Number SRW18UHD Product Line SmartRack Product Model SRW18UHD Product Name SmartRack Heavy-Duty Side-Mount Wall-Mount Rack Enclosure Cabinet Product Type Rack Cabinet Â
-
Application/Usage Server Color Black Color Family Black Depth 36.2" Form Factor Wall Mount Height 37" Product Color Black Rack Depth 32.50" Rack Height 18U Rack Width 19" Static/Stationary Weight Capacity 500 lb Weight (Approximate) 119.90 lb Width 24.8" Â
-
Limited Warranty 5 Year Â
-
Environmental Certification RoHS Environmentally Friendly Yes Features Adjustable Mounting Rails, Removable Side Panel, Vented Top Package Contents - SmartRack Heavy-Duty Side-Mount Wall-Mount Rack Enclosure Cabinet
- 42 x M6 Cage Nuts
- 42 x M6 Equipment Mounting Screws
- 42 x M6 Washers
- 42 x 12-24 Equipment Mounting Screws
- and more below
