Product Overview
Designed and certified for Zone and Division 2 hazardous areas, this compact and lightweight explosion-protected camera can remotely monitor temperatures from -40°C to 350 °C (-40 °F to 660 °F). You'll receive a notification if the temperature exceeds or falls below a set threshold. It will also send a notification if the temperature increases or decreases too rapidly. It supports up to 10 configurable polygonal detection areas, and spot temperature reading shows the exact temperature in specific areas. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.
Main Features
- Thermometric for remote temperature measuring
- Configurable temperature detection areas
- Spot temperature reading
- Worldwide hazardous area certifications
- Built-in cybersecurity with Axis Edge Vault
General Information

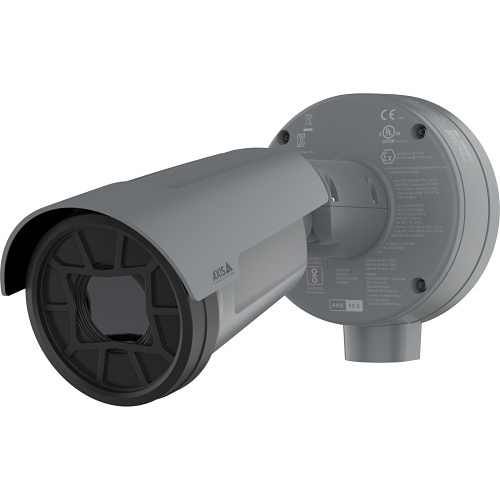

Name: AXIS Q1961-XTE Explosion-Protected Thermal Camera
Category: Axis Communications, Video Surveillance, IP Cameras, Thermal Imaging Cameras
UPC Code: 7331021086869
Country of Origin: Poland. Country of origin is subject to change.
Specifications
-
ADI Part Number Z4-02963001 Brand Name Axis Communications Manufacturer Axis Communications Manufacturer Part Number 02963-001 Product Line Q Product Model 02963-001 Product Name AXIS Q1961-XTE Explosion-Protected Thermal Camera Zone or Division 2-certified thermometric camera Product Series Q19 Product Type Network Camera Â
-
Field of View Horizontal: 55° Vertical: 40.7° Maximum Aperture f/1.18 Maximum Frame Rate 30 fps Night Vision Yes Â
-
Wide Dynamic Range No Â
-
Maximum Video Resolution 384 x 288 Â
-
Maximum Operating Temperature 660°F Minimum Operating Temperature -40°F Operating Humidity 10-100 % Â
-
Lens Included Yes Â
-
Color Gray Depth 11.51" Durability Dustproof, Impact Resistant, Waterproof Height 3.75" Weight (Approximate) 3.3 lb Â
-
Input Voltage 10-28V DC Â
-
Diameter 3.49" Â
-
Storage Type Memory Card Â
-
Horizontal Resolution 384 Â
-
Limited Warranty 5 Year Â
-
Environmentally Friendly Yes Impact Protection Rating IK10 Ingress Protection Rating IP66, IP67 Â
