Vanco HDMI 4K 4×2 Matrix with Downscaling and ARC
Shop all Evolution by Vanco

Evolution EVMX4K42 HDMI 4K 4x2 Matrix with Downscaling and ARC

EVMX4K42|ZX-EVMX4K42
Shop all Evolution by Vanco

Evolution EVMX4K42 HDMI 4K 4x2 Matrix with Downscaling and ARC

EVMX4K42|ZX-EVMX4K42

Sign In for Dealer Pricing

Become an ADI Customer
Vanco HDMI 4K 4×2 Matrix with Downscaling and ARC
Evolution by Vanco

Evolution EVMX4K42 HDMI 4K 4x2 Matrix with Downscaling and ARC

EVMX4K42 | ZX-EVMX4K42

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

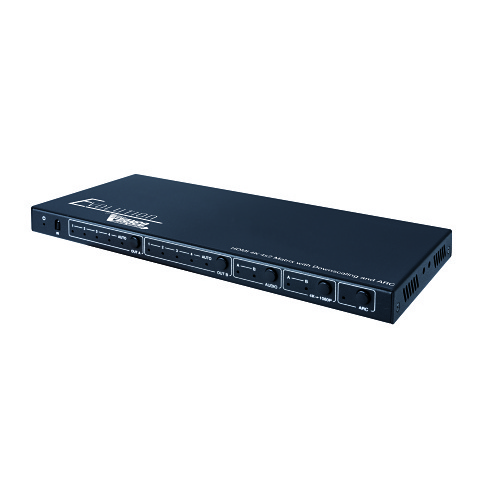

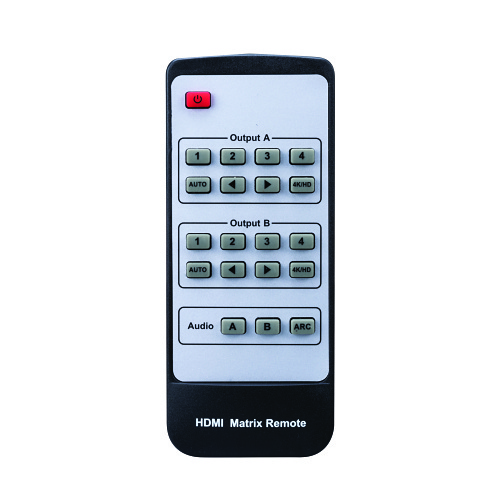

The Evolution by Vanco EVMX4K42 4x2 Matrix with IR, ARC, automatic switching, and downscaling ability, allows 4 HDMI sources to be distributed to up to 2 displays simultaneously. Have multiple sources displayed simultaneously on any display or have a single source split to multiple displays, flexibility for the perfect solution. The EVMX4K42 is capable of transmitting 4K 60Hz, 4:4:4 Chroma Subsampling, and HDR. For control, the EVMX4K42 features multiple methods including simple control using the front panel buttons and IR using the provided remote. Able to downscale either output from 4K to 1080p, a perfect solution for multiple resolution displays, without downgrading the resolution on all outputs. Audio Return Channel (ARC) capable, passing audio from the connected displays, to the connected sources. Audio extraction is also built in, with both digital optical and analog outputs to interface with third party audio systems. For reliable HDMI distribution with 4K, downscaling, and breaking out audio in mind, the EVMX4K42 is a great choice for any application.

Main Features

  • Allows up to 4 HDMI sources to be distributed simultaneously on 2 displays
  • Supports up to 4K 60Hz and 4:4:4 chroma sAling
  • Supports HDR10+ and Dolbsy Vision
  • HDCP 2.2/1.4 compliant
  • Downscales 4K to 1080p resolution
  • Supports Audio Return Channel (ARC)
  • Source Audio Extraction
  • Digital and Analog audio outputs
  • Features auto and manual source switching
  • Manually adjustable EDID

General Information

Name: Evolution EVMX4K42 HDMI 4K 4x2 Matrix with Downscaling and ARC
Category: Evolution by Vanco, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Matrix Switches, Pro HDMI Switchers
UPC Code: 741835112925
Country of Origin: China. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
