EVO-IP TRANSMITTER/RECEIVER
Shop all Evolution by Vanco

Evolution EVOIPLITE EVO-IP Transmitter Receiver

EVOIPLITE|ZX-EVOIPLITE
Shop all Evolution by Vanco

Evolution EVOIPLITE EVO-IP Transmitter Receiver

EVOIPLITE|ZX-EVOIPLITE

Sign In for Dealer Pricing

Become an ADI Customer
EVO-IP TRANSMITTER/RECEIVER
Evolution by Vanco

Evolution EVOIPLITE EVO-IP Transmitter Receiver

EVOIPLITE | ZX-EVOIPLITE

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

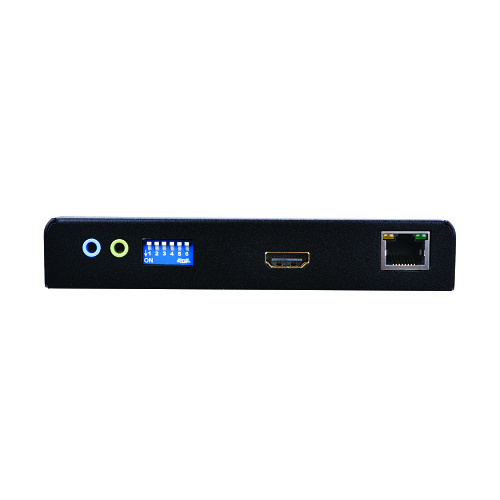

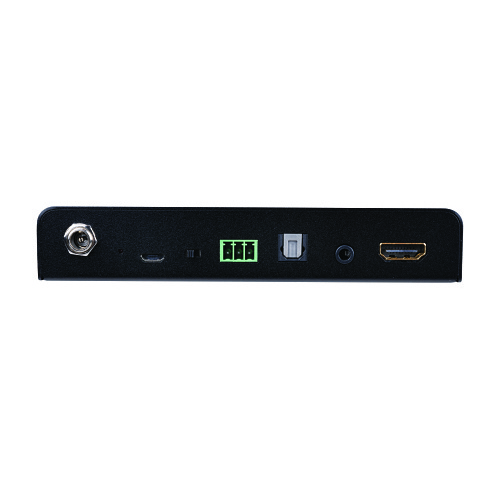

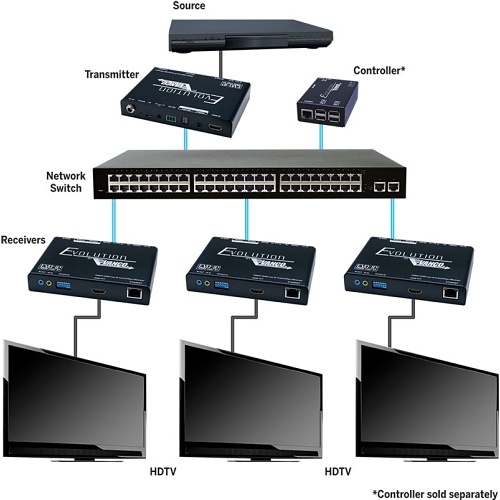

The Evolution by Vanco EVOIPLITE HDMI over IP Transmitter/Receiver is a complete audio, video, and control product over ethernet system. As a whole, the system has the ability to send multiple sources to multiple displays along with IR and RS232 pass-through, analog and digital audio breakout in TX mode, video up to 1080P 60Hz, with POE up to 100m when connected to a POE enabled switch off of a single Cat6 cable. This one single unit can be set to transmit or receive signals. When connected to a network with internet, the EVO-IP Cloud allows for additional features such as scheduling events or maintenance, remote monitoring of a system including remote diagnostics and troubleshooting, as well as voice control capabilities with Alexa! With an IP-less installation option as well as any new sources/displays being discovered automatically within the system, the EVO-IP HDMI over IP system is the fast, easy, and cost effective solution for both residential and commercial installations.HDMI over IP Transmitter/Receiver EVO-IP HDMI over IP unit that can be set to transmit or receiver Compatible with EVO-IP Control Box (EVOIPCTL1) for setup and control Supports 1080p 60Hz EVO-IP system can support multiple transmitters and receivers Utilizes the same network, switch, and control box as other EVO-IP products (EVOIPTX1, EVOIPRX1) HDCP 1.4 Compliant POE or can be powered using provided power supply Manual dip switch configurable for a truly IP-Less installation Easy GUI automatically detects new devices in the system iOS and Android app available Customizable labels and names of sources and displays Setup through the GUI can be done without a computer even being on site Analog and Digital audio breakouts Dynamic EDID IR and RS232 Pass-through Supports Protocol: IP, TCP, UDP, RTP, IPv4, DHCP, HTTP, IGMP, ICMP, MULTICAST, UNICAST Bitstream rate of up to 15Mbps Latency: 720P (190-240ms), 1080P (380-430ms) Connects to the cloud to schedule events or to troubleshoot a situation remotely (opportunity for recurring revenue) Able to be controlled with Alexa for voice controlled switching Dimensions:5.2" W x 0.8" H x 3.8" D

Main Features

  • Supports 1080p 60Hz
  • System can support over multiple transceivers
  • iOS and Android app available

General Information

Name: Evolution EVOIPLITE EVO-IP Transmitter Receiver
Category: Evolution by Vanco, Pro AV, Commercial Video Signal Distribution, Pro HDMI Extenders
UPC Code: 741835112703
Country of Origin: Taiwan. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
