Image of 2D-CG01074
Shop all C2G by Legrand

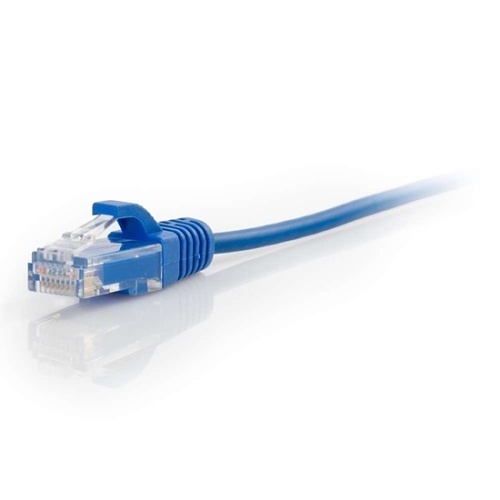

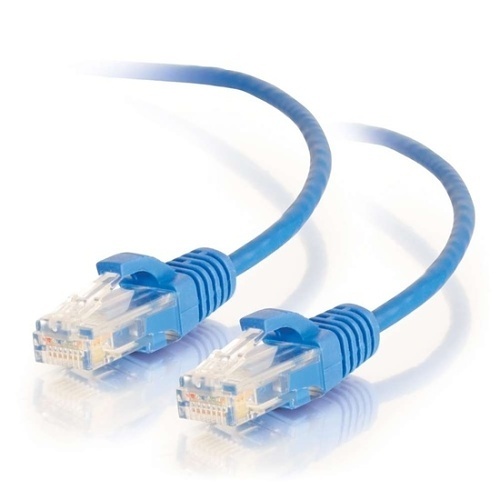

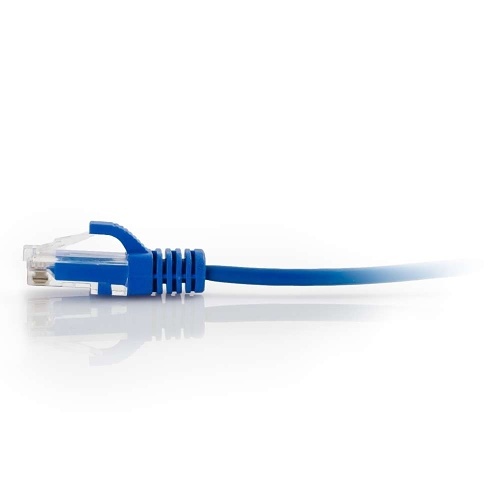

C2G CG01074 CAT6 Snagless Unshielded Slim Ethernet Network Patch Cable, 2' (.6m), Blue

CG01074|2D-CG01074
Shop all C2G by Legrand

C2G CG01074 CAT6 Snagless Unshielded Slim Ethernet Network Patch Cable, 2' (.6m), Blue

CG01074|2D-CG01074

Sign In for Dealer Pricing

Become an ADI Customer
Image of 2D-CG01074
C2G by Legrand

C2G CG01074 CAT6 Snagless Unshielded Slim Ethernet Network Patch Cable, 2' (.6m), Blue

CG01074 | 2D-CG01074

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Small diameter cable designed for high density, 1 Gigabit or 10 Gigabit datacenter applications. The Cat6 Snagless Unshielded (UTP) Slim Network Patch Cable is the perfect solution for high density datacenter applications. The use of 28 AWG conductors allows for a 36% reduction in diameter over a standard Cat6 network patch cable. This reduced diameter provides a smaller cable surface area which allows for increased airflow when compared to standard Cat6 cables. The 28 AWG conductors also allow this cable to have a smaller bend radius than standard Cat6 cables.The small size and small bend radius of this cable allows it to be easily routed through cable management panels. This cable is designed for fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.

Main Features

  • Slim design for high-density applications
  • Supports 1G and 10G data rates
  • 36% diameter reduction for better airflow
  • 28 AWG conductors for smaller bend radius
  • Minimizes Near-End Crosstalk (NEXT)
  • Snagless boot for easy installation
  • Available in multiple colors for coding

General Information

Name: C2G CG01074 CAT6 Snagless Unshielded Slim Ethernet Network Patch Cable, 2' (.6m), Blue
Category: C2G by Legrand, Wire & Cable, Pro AV, Network Patch Cables, Commercial Connector Cables, Pro Patch Cables, Category 6 Patch Cables
UPC Code: 757120010746
Country of Origin: China. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
