Product Overview

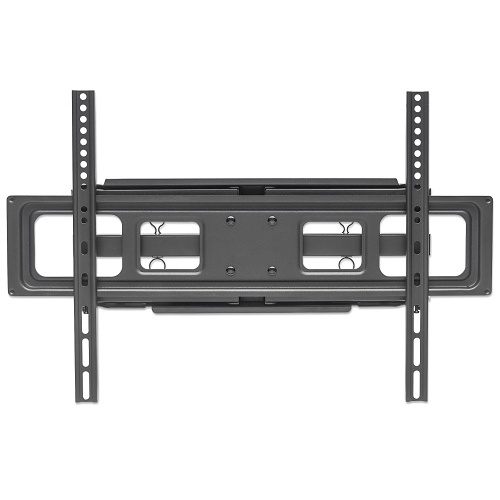

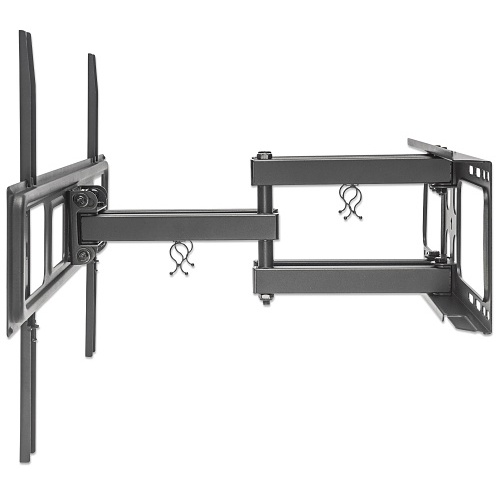

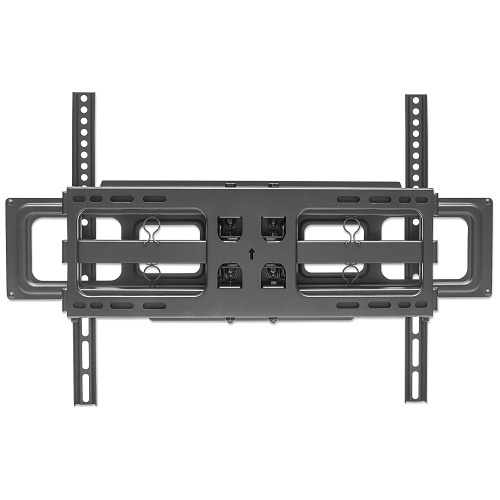

This strong full-motion TV Wall Mount Bracket safely holds your TV on two articulating arms and offers +3 to -15° tilt and +/-60° swivel adjustment for optimized views. It fits flat and curved LCD, OLED or plasma TVs up to 80" and weighing up to 40 kg (88 lb) with VESA compliance up to 600x400. You're all set for a confident above-the-floor installation with an included bubble level and +/-3° post-leveling adjustment that helps get the mount perfectly horizontal on the wall. This mount is ideal for residential, office, hospitality, classroom, conference room, digital signage and other commercial applications. Wherever you install it, the universal Manhattan Full-Motion TV Wall Mount puts the best TV viewing e X perience front and center.
Main Features
- Supports one flat or curved 37" to 80" TV up to 40 kg (88 lbs)
- Optimized views with +3 to -15° tilt, +/-60° swivel and +/-3° post-installation leveling adjustment
- Holds TV 67 to 355 mm (2.6 to 14") from wall
- Heavy-duty steel construction with powder coating
- Includes attachable bubble level
- Built-in cable management to minimize clutter
- Easy installation ideal for home, office and commercial applications
General Information
Name: Intellinet 461351 Universal Basic LCD Full-Motion Wall Mount
Category: Intellinet, Pro AV, Commercial Displays, Pro Display Accessories & Mounts
UPC Code: 766623461351
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number 42-461351 Brand Name Intellinet Manufacturer IC INTRACOM Manufacturer Part Number 461351 Product Name Universal Basic LCD Full-Motion Wall Mount Product Type Wall Mount Weight (Approximate) (g) 3767 Â
-
Device Supported Curved Screen Display, Display, Flat Panel Display, LCD Display, TV Maximum Load Capacity 88 lb Maximum Load Capacity (g) 39916.129 Maximum Screen Size Supported (mm) 1778 Â
-
Application/Usage Classroom, Commercial, Conference Room, Digital Signage, Home, Hotel, Office, Wall Form Factor Wall Mount Height 16.5" Height (mm) 420.116 Product Color Black Product Material Steel VESA Mount Compatible Yes Weight (Approximate) 8.30 lb Width 25.8" Width (mm) 655.066 Â
-
Length 18.3" Length (mm) 464.058 Maximum Screen Size Supported 70" Minimum Screen Size Supported 37" Minimum Screen Size Supported (mm) 939.8 Mount Pattern Universal Number of Displays Supported 1 Â
-
Limited Warranty Lifetime Â
-
Features +/- 3° Level Adjustment, +/- 60° Swivel, 5°/-15° Tilt, Adjustable Tilt, Articulating, Extendable, Full Motion, Swivel Package Contents - Universal Basic LCD Full-Motion Wall Mount
- Installation Hardware with Instructions
