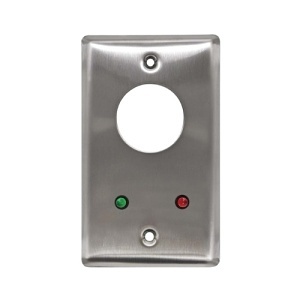

Camden CM-1220-7212 Door Controls CM-1220-7212 Key Switch, SPST N.O. and N.C. Momentary, Red and Green 12V LEDs Mounted on Faceplate
Camden CM-1220-7212 Door Controls CM-1220-7212 Key Switch, SPST N.O. and N.C. Momentary, Red and Green 12V LEDs Mounted on Faceplate
Camden CM-1220-7212 Door Controls CM-1220-7212 Key Switch, SPST N.O. and N.C. Momentary, Red and Green 12V LEDs Mounted on Faceplate
CM-1220-7212Â |Â CM-12207212
Please sign in to view pricing and availability and to add to cart.
Product Overview
Camden Door Controls, CM-1200 and CM-2200 Series flush mount switches meet the stringent demands of key switch controls. They are designed for use with standard 1", 1 1/8", or 1 1/4" mortise cylinders.
The CM-1200 is single gang 2 3/4" width, CM-2200 is only 1 3/4" wide, perfect for door frames or narrow areas. Both models accept one or two switches, and have a counter sunk cylinder opening, in a one piece casted assembly. A brass cylinder lock ring, 2 socket /slotted screws, and 2 tamperproof screws with driver, are also supplied. (The mortise cylinder is available separately from Camden Door Controls.) The design and construction makes it ideal for all weather environments. The assembly is tamper and vandal resistant.
CM Key Switches are flexible, and can be supplied in numerous switch configurations to suit varied commercial and industrial applications, and functions. Camden Key Switches provide a practical, cost effective means for authorized personnel to control and signal various functions within a complex.
Main Features
- SINGLE GANG AND NARROW STYLE MODELS
- ACCEPTS STANDARD MORTISE CYLINDERS, 1" - 1 1/4"
- HEAVY DUTY STAINLESS STEEL FACEPLATE
- LOCATORS PREVENT CYLINDER FROM SPINNING
- NO SET SCREWS REQUIRED
- VANDAL RESISTANT
- TAMPER PROOF SCREWS & DRIVER PROVIDED
- INDOOR OR OUTDOOR APPLICATIONS
- UL/CSA APPROVED SWITCHES
- 1 OR 2 SWITCHES MAY BE INSTALLED
General Information
Specifications
-
ADI Part Number CM-12207212 Brand Name Camden Door Controls Manufacturer Camden Door Controls Manufacturer Part Number CM-1220-7212 Product Name CM-1200 Mortise Key Switch Product Series CM-1200 Product Type Mortise Key Switch Switch Action Momentary Â
-
Application/Usage Electric Strike, Indoor, Outdoor Color Details Red and Green : LED
Form Factor Box Mount Height 3.3" Height (mm) 83 Material Details Stainless Steel - Faceplate Product Color Green, Red Product Material Stainless Steel Width 2.8" Width (mm) 70 Â
-
Package Contents - Mortise Key Switch
- Stainless Steel Torx
- Snake Eye Security Screw
