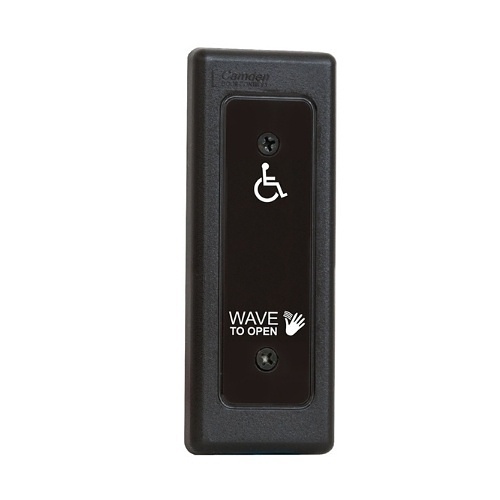

Camden CM-333/42N SureWave Hybrid Battery Powered Touchless Switch, Relay, Narrow, Black Faceplate
CM-333/42N|CM-33342N
Camden CM-333/42N SureWave Hybrid Battery Powered Touchless Switch, Relay, Narrow, Black Faceplate
CM-333/42N|CM-33342N
Camden Door Controls
Camden CM-333/42N SureWave Hybrid Battery Powered Touchless Switch, Relay, Narrow, Black Faceplate
CM-333/42N | CM-33342N
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The SureWave™ family of touchless switches by Camden lead the industry in performance, quality and value - with a range of features unmatched by any other on the market. CM-333 hybrid battery powered touchless switch with relay provides ‘state of the art’ door activation while eliminating the spread of germs.
Battery powered touchless switches offer an adjustable operating range, selectable motion sensing and momentary or maintained relay operation. CM-333 switches are also Lazerpoint RF™ compatible with CM-TX99 plug in wireless transmitter.
Main Features
- Wired,Wireless and hybrid (wirless/wired) models
- Indoor/outdoor use. -4ºF to +153ºF (-20ºC to +85ºC) operating temp. Gasket included in package
- Battery poweredWireless models offer 2 year battery life using standard'AA' alkaline batteries
- Line powered models offer 12/24V AC/DC operation
- 1 and 2 relay wired models, SPDT, Form 'C'
- Narrow (jamb), single and and double gang faceplates
- Polycarbonate (black) and stainless steel faceplates
- Advanced active infra-red technology with fast response
- Heavy duty 3 or 5 Amp rated relay
- Adjustable operating range up to 28" , refer to model specification
General Information
Name: Camden CM-333/42N SureWave Hybrid Battery Powered Touchless Switch, Relay, Narrow, Black Faceplate
Category: Camden Door Controls, Access Control, Egress Devices, Request to Exit Devices
UPC Code: 670454182876
Country of Origin: Canada. Country of origin is subject to change.
Specifications
-
ADI Part Number CM-33342N Brand Name Camden Manufacturer Camden Door Controls Manufacturer Part Number CM-333/42N Product Line SureWave Product Model CM-333/42N Product Name CM-333/42N Touch-free Button Product Series CM-333 Product Type Touch-free Button Weight (Approximate) (g) 181.437
-
Gang Type Single Gang
-
Application/Usage Door, Indoor/Outdoor Color Black Depth 5.3" Depth (mm) 133.35 Height 2" Height (mm) 50.8 Material PC Product Color Black Weight (Approximate) 6.40 oz Width 5.5" Width (mm) 139.7
-
Input Voltage 12V DC, 24V DC Input Voltage (V DC) 12, 24
-
Print/Message Handicap Logo, Wave To Open
-
Limited Warranty 3 Year
-
ADA Compliant Yes Compatibility CM-TX99 Wireless Transmitter Environmental Certification RoHS Environmentally Friendly Yes Features Heavy Duty, Infrared Receiver, Momentary On/Off Mode, Surface Mount, Time Delay Package Contents - CM-333/42N Touch-free Button
- 2 x 'AA' Alkaline Batteries
