Product Overview

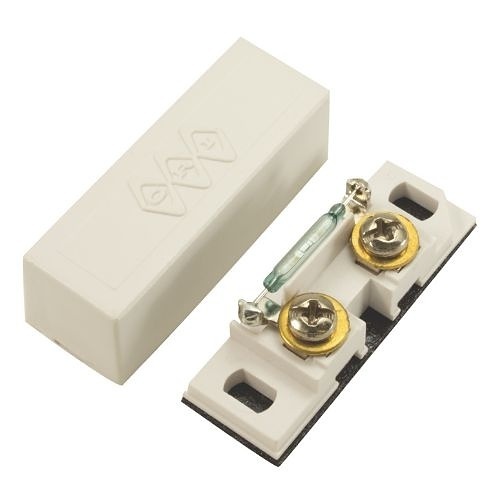

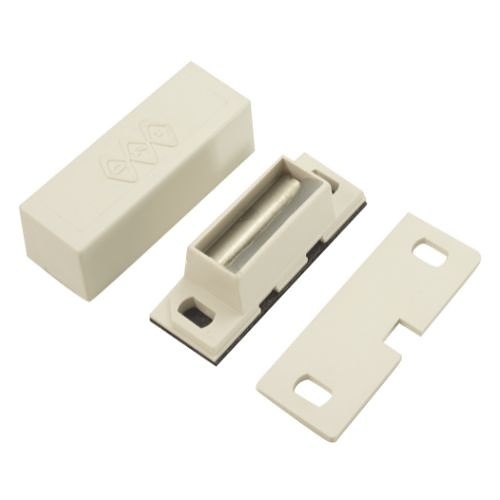

Miniature surface mount switch set, standard gap 1/2", closed loop.
Main Features
- Perfect for residential and light commercial applications
- Small size is 1/2" x 1/2" x 1-1/2"
- Tamper proof
- Screw terminals
- Hermetically sealed
- Surface mount magnetic contact
- Plated contacts resist sticking or freezing
- Covers and mounting hardware included
- Switches and magnets available separately
General Information
Name: GRI 129A-W Mini Surface Switch with Cover, White
Category: George Risk Industries, Intrusion, Alarm Contacts, Magnetic Contacts
UPC Code: 697625004072
Country of Origin: United States. Country of origin is subject to change.
Specifications
-
ADI Part Number GI-129AW Brand Name George Risk Industries Manufacturer George Risk Industries Manufacturer Part Number 129A-W Product Model 129A-W Product Name Magnetic Contact Product Type Magnetic Contact Â
-
Connectivity Technology Wired Contact Configuration N.O. Contact Form Form A Contact Resistance 150000 Micro Ohm Mounting Type Mini Surface Standard Gap 0.5" Termination Style Screw Terminal Â
-
Color White Depth 1.17" Height 0.48" Width 0.54" Â
-
Input Current 400mA Input Voltage 160V DC Power Source DC Â
-
Contact Type Closed Loop Â
