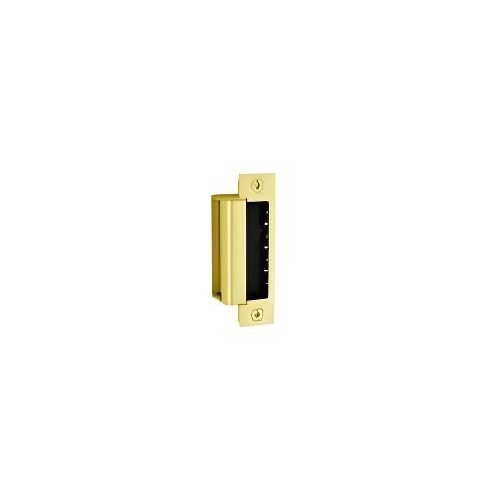

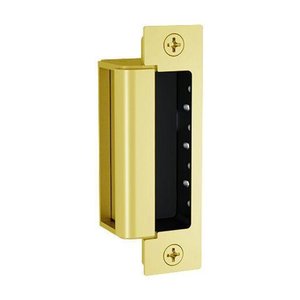

HES 1600-CDB-605-LMS 1600 Series Complete Electric Strike for Deadbolt Locks with 1DB Faceplate Kit, Lock Monitor and Strike Monitor, Bright Brass
HES 1600-CDB-605-LMS 1600 Series Complete Electric Strike for Deadbolt Locks with 1DB Faceplate Kit, Lock Monitor and Strike Monitor, Bright Brass
HES 1600-CDB-605-LMS 1600 Series Complete Electric Strike for Deadbolt Locks with 1DB Faceplate Kit, Lock Monitor and Strike Monitor, Bright Brass
1600-CDBÂ |Â HE-16D5LS
Please sign in to view pricing and availability and to add to cart.
Product Overview
The 1600 Series electric strike accommodates up to a 1" deadbolt with enhanced vertical cavity spacing.
The 1600 Series Electric Strike sets a new standard in the industry by offering dynamic integrated adjustability and field configurable options compatible with any cylindrical or mortise lock. The modular design of the platform makes stocking and installing easier with interchangeable faceplates and accessories. For the first time, the aesthetics of an electric strike are complementary to other surrounding door hardware and blend in with the opening due to the fully finished design, available in eight finishes.
Main Features
- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1 million cycles
- Field selectable fail safe/fail secure
- Non-handed
- Interchangeable faceplates and accessories
- Field replaceable components
- Fully finished faceplate, keeper, case and trim
General Information
Specifications
-
ADI Part Number HE-16D5LS Brand Name HES by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number 1600-CDB-605-LMS Product Model 1600-CDB Product Name 1600 Electric Strike Product Series 1600 Product Type Electric Strike Â
-
Compatible Door Frame Type Metal, Wood Compatible Door Lock Type Cylindrical, Mortise Door Handling Non Handed Duty Cycle 1000000 Electric Strike Assembly Body with Faceplate Holding Strength 1500 lb Holding Strength (g) 680388.555 Security Configuration Fail Safe, Fail Secure Â
-
Application/Usage Door, Door Lock, Fire Door, Industrial, Outdoor Color Family Brown Faceplate Height 4.88" Faceplate Height (mm) 124 Faceplate Width 1.25" Faceplate Width (mm) 32 Keeper Height 3.23" Keeper Height (mm) 82 Product Color Bright Brass Product Material Stainless Steel Strike Depth 1.63" Strike Depth (mm) 41.3 Â
-
Input Current 120 mA, 240 mA Input Current (A) 0.12, 0.24 Input Voltage 12V DC, 24V DC Power Source DC Supply Â
-
Limited Warranty 5 Year Â
-
Features Burglary Resistant, Dual Lock Monitor, Fire Resistant, PoE Friendly, Static Strength, Tamper Resistant, Windstorm Resistant Package Contents - 1600 Electric Strike
- 1DB Faceplate Kit for Deadbolts
Â
