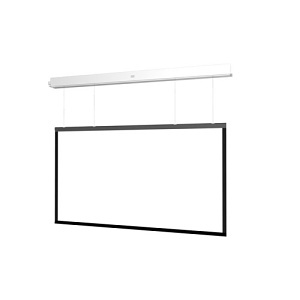

Da-Lite DL15259L Advantage Recessed Ceiling Screen with SightLine Cable Drop, 184D, 90"x160", 16:9
DL15259L|HI-DL15259L
Da-Lite DL15259L Advantage Recessed Ceiling Screen with SightLine Cable Drop, 184D, 90"x160", 16:9
DL15259L|HI-DL15259L
Da-Lite by Legrand
Da-Lite DL15259L Advantage Recessed Ceiling Screen with SightLine Cable Drop, 184D, 90"x160", 16:9
DL15259LÂ |Â HI-DL15259L
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
The Advantage ceiling recessed electric screen series is designed with ceiling trim in place, to conceal the rough opening eliminating the need to complete additional trim work once the screen is installed. Its two-stage installation option affords the screen case to be installed during the rough-in construction stage, and the screen surface assembly during the finishing stage. Sliding installation brackets allow mounting flexibility for easy attachment of the screen housing to the structure above the drop ceiling. Advantage with SightLine Da-Lite new cable drop feature, SightLine, available with the tried-and-true Advantage (up to 184" Diagonal and up to 189" Diagonal) electric screen, gives the impression of a floating screen. A suspension system in its single roller design features 3 or 4 thin cables eliminating the need for black drop the black border above the projection screen. While the market is accustomed to specifying drop distance upon ordering, now vertical placement of the screen can be variable as the cables accommodate a range of drop distances up to 70" (standard) or 10" (option) between the ceiling and the top of the screen making ordering a snap. What more, this feature creates usable space above the viewing area to preserve architectural interests and provides the opportunity for camera or speaker placement. Enhanced aesthetics, painless ordering, smooth installation and future proofing for height adjustability this is the fine line between status quo and jaw drop.
Main Features
- Standard Low Voltage Control (LVC) and available optional controls allows screen operation flexibility
- UL Plenum rated case
- White powder-coated case for a clean aesthetic
- Decora-style, three-button wall switch
- Standard black backing retains projected brightness on front projection surfaces
- Seamless surfaces in all models
General Information
Name: Da-Lite DL15259L Advantage Recessed Ceiling Screen with SightLine Cable Drop, 184D, 90"x160", 16:9
Category: Da-Lite by Legrand, Pro AV, Pro Projectors & Accessories, Pro Projector Screens
UPC Code: 840236909896
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number HI-DL15259L Brand Name Da-Lite by Legrand Manufacturer Part Number DL15259L Product Name DL15259L Advantage Series Product Type Projection Screen Â
-
Diagonal Image Size 184" Â
-
Aspect Ratio 16:9 Â
-
Color Matte White Height 90" Width 160" Â
