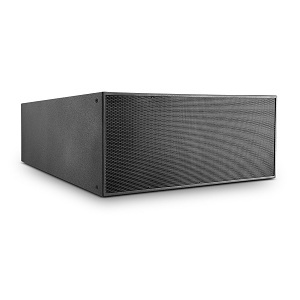

JBL Professional VLA601I 3-Way Horn-Loaded Linear Array Loudspeaker System
VLA601Hi|JF-VLA601I
JBL Professional VLA601I 3-Way Horn-Loaded Linear Array Loudspeaker System
VLA601Hi|JF-VLA601I
JBL Professional
JBL Professional VLA601I 3-Way Horn-Loaded Linear Array Loudspeaker System
VLA601Hi | JF-VLA601I
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Three-Way Full Range Loudspeaker with 2 x 15" LF, 2 x 8" MF, 3 x 1.5" exit HF 60° Horizontal Dispersion
Variable Line Array Series (VLA Series) is a revolutionary product providing high-impact sound reinforcement at throw distances beyond the reach of traditional loudspeaker designs.
Main Features
- Line array module optimized for permanent install applications.
- Standard version features 3 HF drivers, 2MFdrivers, & 2 LF drivers
- Advanced technology component transducers for low weight and high output.
- Comprehensive rigging points for creating a line array configuration.
- Rugged DuraFlexâ„¢ exterior finish and weatherized components. JBL's WRC or WRX weather protections also available.
General Information
Name: JBL Professional VLA601I 3-Way Horn-Loaded Linear Array Loudspeaker System
Category: JBL Professional, Pro AV, Commercial Audio, Pro Speakers
UPC Code:
Country of Origin: Mexico. Country of origin is subject to change.
Specifications
-
ADI Part Number JF-VLA601I Brand Name JBL Professional Manufacturer Harman International Industries, Inc Manufacturer Part Number VLA601I Product Model VLA601Hi Product Name VLA601Hi Speaker Product Series VLAi Product Type Speaker Weight (Approximate) (g) 100700 Â
-
Crossover Type 3-way Impedance 16 ohms Impedance (Ohm) 16 Maximum Frequency Response (Hz) 19500 Midrange Driver Size 8" Midrange Driver Size (mm) 203.2 Minimum Frequency Response (Hz) 45 Sensitivity 111 dB Sensitivity (dB) 111 Tweeter Driver Size 1.50" Tweeter Driver Size (mm) 38.1 Woofer Driver Size 12" Woofer Driver Size (mm) 304.8 Â
-
Maximum Frequency Response 19.50 kHz Minimum Frequency Response 45 Hz Â
-
Depth 30.20" Depth (mm) 767 Height 20.8" Height (mm) 529 Speaker Installation Outdoor Weight (Approximate) 222.01 lb Width 53" Width (mm) 1347 Â
-
Package Contents - VLA601Hi Speaker
- Gland Nut
- Cover Plate
