Product Overview
RoboSHOT Elite Series cameras are professional A/V presentation cameras. Simultaneous HDBaseT and IP (H.264) streaming. Recommended for conference rooms, training rooms, and classrooms that require a wide angle of view. Includes OneLINK Bridge Express Extension System.Key Features:12x Optical Zoom1/2.5-type Exmor R CMOS sensor70.2° horizontal field of viewSimultaneous HDbaseT, HDMI and IP H.264 streamingRemote IP ManagementSimple, clutter-free camera extension with HDBaseT technologyPower, video and control over a single Cat-5e cable up to 230 ft. (70m), or over a Cat-6 cable up to 328 ft. (100m)Bridges audio and video for easy soft-client conferencingSimultaneous HDMI, USB 3.0, and IP Streaming outputsConfigurable audio matrix with AECUp to 1080p/60 resolution available over uncompressed USBNew! Vaddio Deployment ToolSimplify installations by viewing all your Vaddio products across a deployment on one screen with the simple click of a button. The Vaddio Deployment Tool enables you to select devices from the network, choose an action like rebooting the device, unmute the audio, or updating firmware and voilà ! â€" remote troubleshooting success. You can even conduct mass firmware updates on hundreds of devices all at once, which saves you a lot of time.Download the Deployment Tool >Introducing the RoboSHOT Elite Series â€" Vaddio’s next generation of professional cameras. Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.RoboSHOT Elite cameras are equipped with enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.Enjoy IP streaming (RTSP or RTMP format with H.264 compression) to share live events like church services, lectures, or meetings over popular applications like YouTube, Livestream and Facebook.A web-based user interface gives the user camera control with a web browser from anywhere in the world over the IP network. To watch the IP stream, simply enter the camera’s streaming URL into any standards based (H.264, RTSP format) media player. Perfect for remote management, network operating centers and overall IT control.The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio’s industry-leading Tri-Synchronous Motion technology allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.The RoboSHOT 12E cameras are recommended for small to medium spaces such as conference rooms, training rooms, and classrooms that require a wide angle of view.Video outputs include simultaneous HDBaseT, HDMI and IP (H.264) streaming. Connect directly to HDBaseT-compatible devices or pair with Vaddio OneLINK receivers to simplify cabling and extend installation distance.OneLINK Bridge Express connects a non-USB camera and audio source, and bridges to a USB stream for easy connection to USB-based conferencing applications such as Microsoft Teams, Google Meet, and Zoom.Along with the bridging capabilities, the system’s OneLINK Bridge Express for HDBaseT Cameras extends HD video, 100BaseT Ethernet, RS-232, and power up to 328 ft (100 m) on a single Cat-5e/6 cable.This Package Includes:RoboSHOT 12E HDBT camera (black or white)Thin Profile Wall Mount (black or white) with mounting hardware and installation manualVaddio IR Remote CommanderOneLINK Bridge Express Interface48V power supply with AC cord set(s)EZCamera RS-232 Control Adapter4 qty 3-position phoenix-style connectors6 ft. (1.8m) USB 3.0 cable, type A to B
General Information

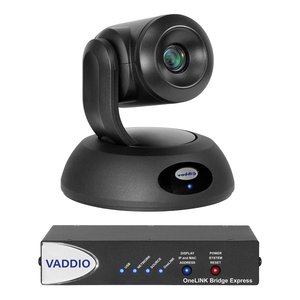

Name : Vaddio RoboSHOT 12E HDBT Series OneLINK Video Conferencing Camera and Bridge Express System, 12x Optical Zoom (999-99600-270) , Vaddio by Legrand
Category : Video Conference Systems
UPC Code : 840077507473
Country of Origin : United States. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : MV-999996000
Brand Name : Vaddio
Manufacturer : Legrand Group
Manufacturer Part Number : 999-99600-270
Product Line : RoboSHOT Elite
Product Model : 999-99600-270
Product Name : RoboSHOT 12E HDBT OneLINK Bridge Express System
Product Type : Video Conferencing Camera
Technical Information
Field Of View (FOV) Angle : 70°
Host Interface : USB 3.0
Mounting Type : Wall
Display & Graphics
Maximum Video Resolution : 1920 x 1080
Interfaces/Ports
HDMI Out : Yes
Physical Characteristics
Cable Length : 230'
Cable Length (mm) : 70104
Color : Black
Product Color : Black
Warranty
Limited Warranty : 3 Year
Miscellaneous
Environmental Certification : CE, FCC, HDBaseT, TAA
Package Contents : <ul><li>RoboSHOT 12E HDBT camera (black or white)</li><li>Thin Profile Wall Mount (black or white) with mounting hardware and installation manual</li><li>Vaddio IR Remote Commander</li><li>OneLINK Bridge Express Interface</li><li>and more below</li></ul>, 4 qty 3-position phoenix-style connectors6 ft. (1.8m) USB 3.0 cable, type A to B, 48V power supply with AC cord set(s), EZCamera RS-232 Control Adapter
TAA Compliant : Yes
