Product Overview

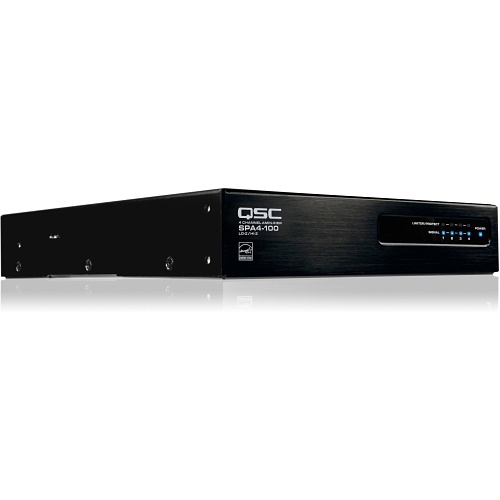

The SPA4-100 four channel amplifier delivers 100 watts rms per channel into 4 or 8 ohms; the four channels can also be bridged in pairs, each pair providing up to 200 watts rms into 4 or 8 ohms. The SPA4-100 bridged pair channels can be switched into 70V or 100V direct drive mode providing up to 350 watts rms into a 70V or 100V output; when in 70V or 100V mode the 80Hz highpass filter is automatically engaged.
General Information
Name : QSC SPA4-100 1/2 Rack Unit 4-Channel Energy Star , QSC
Category : Pro Amplifiers
UPC Code : 999999535657
Specifications
General Information
ADI Part Number : QB-SPA4100
Brand Name : QSC
Manufacturer : QSC Audio
Manufacturer Part Number : SPA4-100
Product Model : SPA4-100
Product Name : SPA4-100 Amplifier
Product Series : SPA
Product Type : Amplifier
Weight (Approximate) (g) : 1814.369
Technical Information
Audio Channels : 4
Classification : D
Impedance : 8 ohms
Impedance (Ohm) : 8
Maximum Frequency Response (Hz) : 20000
Minimum Frequency Response (Hz) : 20
Audio
Maximum Frequency Response : 20 kHz
Minimum Frequency Response : 20 Hz
RMS Output Power : 400W
RMS Output Power (W) : 400
Physical Characteristics
Depth : 9.5"
Depth (mm) : 241.3
Height : 1.7"
Height (mm) : 43.18
Weight (Approximate) : 4 lb
Width : 8.7"
Width (mm) : 220.98
Power Description
Input Voltage : 12.3V AC
Warranty
Limited Warranty : 3 Year
Miscellaneous
Energy Star : Yes
Environmental Certification : RoHS, WEEE
Environmentally Friendly : Yes
Package Contents : <ul> <li>SPA4-100 Amplifier</li> <li>Power cable</li> <li>Quick start guide</li> <li>Connector kit</li> <li>Rack mount ears</li> <li>Mounting brackets</li> </ul>
TAA Compliant : No
