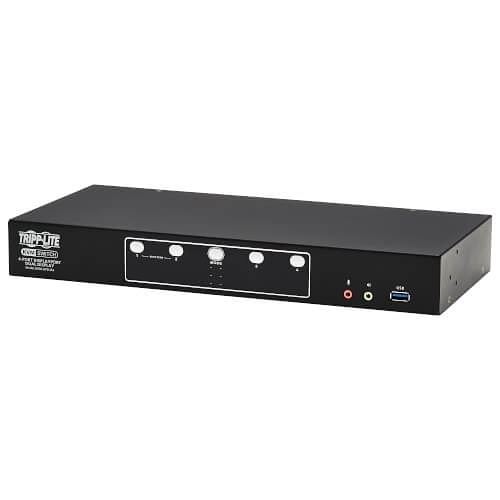

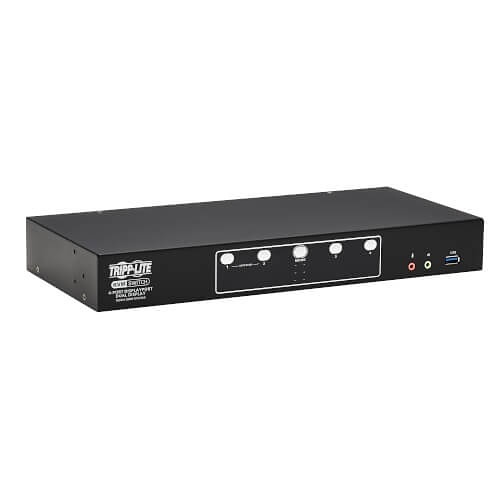

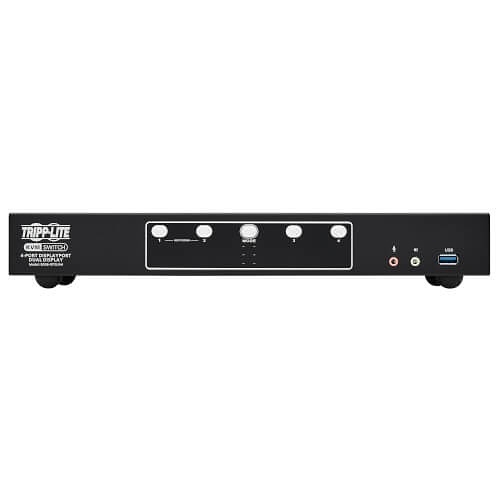

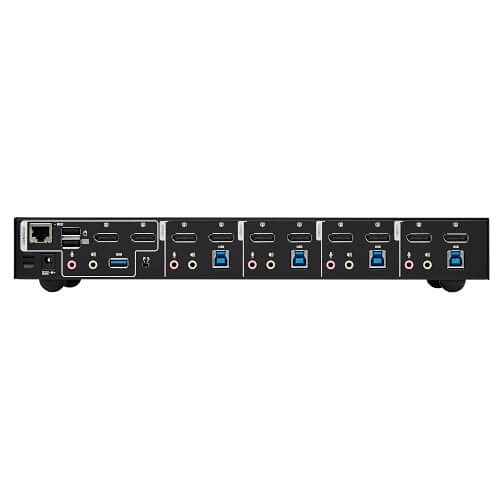

Image of TC-B06DP2UA4

Tripp Lite B006-DP2UA4 4-Port 4K 60Hz DisplayPort Dual-Display KVM Switch, USB 3.2 Gen-1, HDCP 2.2, USB Sharing

B006-DP2UA4|TC-B06DP2UA4

Tripp Lite B006-DP2UA4 4-Port 4K 60Hz DisplayPort Dual-Display KVM Switch, USB 3.2 Gen-1, HDCP 2.2, USB Sharing

B006-DP2UA4|TC-B06DP2UA4

Sign In for Dealer Pricing

Become an ADI Customer
Image of TC-B06DP2UA4
Tripp Lite by Eaton

Tripp Lite B006-DP2UA4 4-Port 4K 60Hz DisplayPort Dual-Display KVM Switch, USB 3.2 Gen-1, HDCP 2.2, USB Sharing

B006-DP2UA4 | TC-B06DP2UA4

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

Features l Connects Four Computers to Two 4K Monitors and a Single Keyboard/Mouse

This dual-monitor KVM switch lets you access, control, boot and reboot four computers or other devices with DisplayPort connectors and switch back and forth between them. It's ideal for work-from-home applications in which you'd like to share two monitors between your home and work computers. All computers share two DisplayPort 4K monitors and one USB keyboard/mouse, which saves space on your desk or workspace.

Switching Between Computers Is Fast and Easy
Use the front-panel push buttons, hotkey commands, mouse movement or RS-232 commands for quick and easy toggling between computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. LEDs indicate which computer is currently selected.

Transmits Crystal-Clear 4K Video with Digital Audio
The B006-DP2UA4 supports video resolutions up to 4K UHD (3840 x 2160 @ 60 Hz) and 4K DCI (4096 x 2160 @ 60 Hz) on two DisplayPort monitors, as well as 2.1-channel surround sound for music, movies and games. Independent audio switching lets you listen to music or a podcast on one computer, while simultaneously working on a second computer. Front-panel audio jacks have priority over the rear-panel jacks. A DCC (Daisy Chain Control) port lets you connect two B006-DP2UA4 KVM switches for a quad-display installation.

USB Hub Lets You Share Peripherals between Computers
Two USB 3.2 Gen 1 hub ports allow you to share USB peripherals, such as printers, hard drives, scanners, webcams and flash drives, between all connected computers. This lets you avoid the expense and clutter of separate USB hubs. The USB-A ports support data transfer speeds up to 5 Gbps and are backward compatible with previous USB generations.

Designed for Convenient Mounting with Included Brackets
The heavy-duty metal housing can be placed on a desktop or other level surface that can safely support the weight of the KVM switch and attached cables. It can also be mounted at the front or rear of a standard 19-inch rack with user-supplied hardware. The included DC power supply connects to any standard AC power source.

System Requirements

  • DisplayPort monitors
  • USB mouse/keyboard
  • Computers with DisplayPort and USB-A ports (audio ports optional)
  • Windows 7 or 10, macOS 10 or higher, Linux with kernel .15 or higher

Main Features

  • Supports both 4K UHD and 4K DCI resolutions @ 60 Hz for superior video quality
  • Dual USB 3.2 Gen 1 hub ports let you share USB peripherals with all computers
  • Push buttons, hotkeys, mouse or RS-232 allow easy toggling between computers
  • Dual-monitor support enables convenient multitasking and increased productivity
  • Works with all major operating systems, including Windows, macOS and Linux
  • 3-year limited warranty

General Information

Name: Tripp Lite B006-DP2UA4 4-Port 4K 60Hz DisplayPort Dual-Display KVM Switch, USB 3.2 Gen-1, HDCP 2.2, USB Sharing
Category: Tripp Lite by Eaton, Data Comm & Networking, KVM Switches & Extenders
UPC Code:
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources
