Tripp Lite ECO850LCD 850VA 425W Standby UPS, 12 NEMA 5-15R Outlets, 120V 50/60 Hz, USB, LCD, ENERGY STAR, Desktop/Wall
ECO850LCD|TC-ECO850LCD
Tripp Lite ECO850LCD 850VA 425W Standby UPS, 12 NEMA 5-15R Outlets, 120V 50/60 Hz, USB, LCD, ENERGY STAR, Desktop/Wall
ECO850LCD|TC-ECO850LCD
Tripp Lite by Eaton
Tripp Lite ECO850LCD 850VA 425W Standby UPS, 12 NEMA 5-15R Outlets, 120V 50/60 Hz, USB, LCD, ENERGY STAR, Desktop/Wall
ECO850LCDÂ |Â TC-ECO850LCD
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Main Features
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown

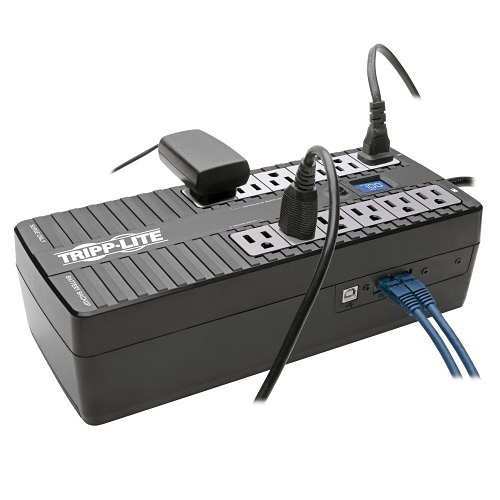

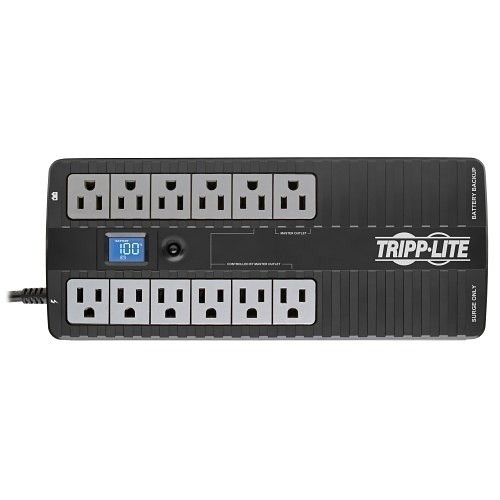

- 12 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- Touchscreen LCD displays important voltage, load and battery data in real time
- ENERGY STAR-certified to save electricity, lower costs, and protect the environment
- 3-year limited warranty
General Information
Name: Tripp Lite ECO850LCD 850VA 425W Standby UPS, 12 NEMA 5-15R Outlets, 120V 50/60 Hz, USB, LCD, ENERGY STAR, Desktop/Wall
Category: Tripp Lite by Eaton, Batteries & Power Supplies, Data Comm & Networking, Power Management, Power Products, UPS, UPS
UPC Code: 037332157522
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-ECO850LCD Brand Name Tripp Lite by Eaton Manufacturer Tripp Lite by Eaton Manufacturer Part Number ECO850LCD Packaged Quantity 1 Each Product Model ECO850LCD Product Name 850VA Ultra-compact Green LCD UPS Systm Product Series ECO Product Type Standby UPS Â
-
Dataline Protection RJ-11 EMI/RFI Noise Filter Yes Number of Battery & Surge Outlets 6 Number of Surge-only Outlets 6 Output Voltage 110V AC, 115V AC, 120V AC Phase Single Phase Receptacle Detail 12 x NEMA 5-15R Receptacle Type NEMA 5-15R Transfer Time 6 ms USB (HID Compliant) Port Yes Â
-
DC System Voltage 12 V DC Replaceable Battery Yes Typical Battery Recharge Time 8-Hour Â
-
Output Voltage (V) 12, 24 Surge Energy Rating (J) 316 Â
-
Status Indicators Touchscreen LCD reports operating mode, input/output voltage, input/output frequency and load capacity
Â
-
Maximum Operating Temperature 104°F (40°C) Â
-
Alarm Battery Backup, Fault, Low Battery, Overload, Replace Battery Â
-
Application/Usage ATM, Blu-ray Player, Desktop Computer, Digital signage, Gaming Console, Home Theater, Home/Office, Kiosk, Media Center, Printer, Router, Security System, TV Color Black Color Family Black Depth 12.2" Form Factor Tower, Ultra-compact Desktop, Wall Mount Height 3.5" Product Color Black Weight (Approximate) 6.81 lb Width 5.1" Â
-
Input Frequency 60 Hz Input Voltage 120V AC Output Frequency 60 Hz Plug/Connector Type NEMA 5-15P Surge Energy Rating 316 J Waveform Type Pulse-width Modulated Sine Wave Â
-
Load Capacity (VA) (W) 850VA|425W Load Capacity (W) 850.000 Â
-
Additional Warranty Information 3 year warranty. $100,000 connected equipment insurance (USA, Puerto Rico, & Canada Only).
Limited Warranty 2-Year Â
-
Energy Star Yes Environmental Certification RoHS Package Contents - ECO850LCD 850 VA Desktop UPS
- USB Cable
- Instruction Manual
Â
