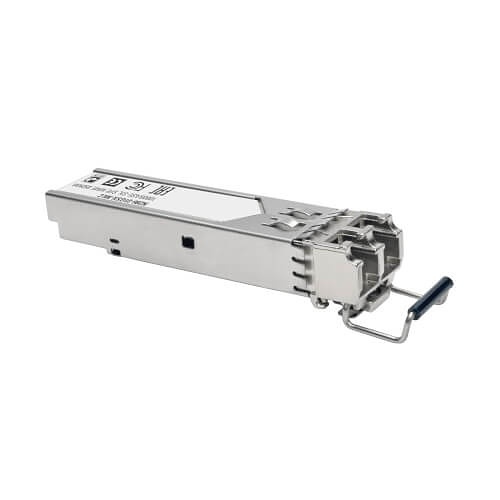

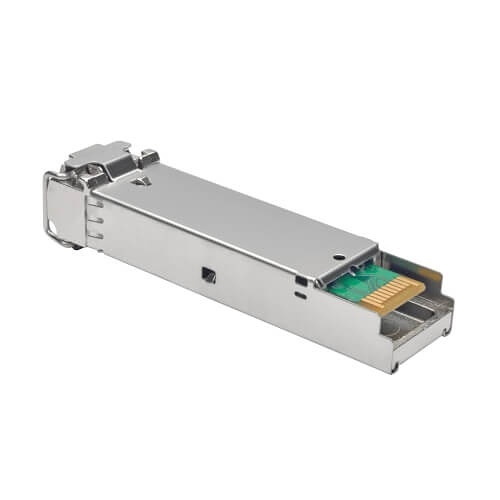

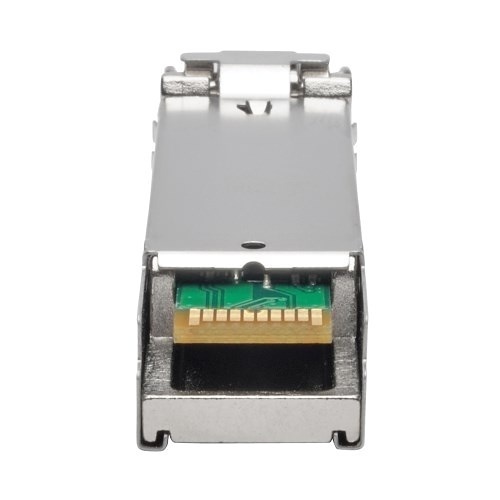

Tripp Lite N286-01GSX-MLC HP J4858C Compatible SFP Transceiver, 1000Base-SX, DDM, Multimode LC, 850 nm, 1804.46' (550 m)
N286-01GSX-MLC|TC-N28601GSX
Tripp Lite N286-01GSX-MLC HP J4858C Compatible SFP Transceiver, 1000Base-SX, DDM, Multimode LC, 850 nm, 1804.46' (550 m)
N286-01GSX-MLC|TC-N28601GSX
Tripp Lite by Eaton
Tripp Lite N286-01GSX-MLC HP J4858C Compatible SFP Transceiver, 1000Base-SX, DDM, Multimode LC, 850 nm, 1804.46' (550 m)
N286-01GSX-MLC | TC-N28601GSX
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Main Features
- Supports data transfer rates up to 1 Gbps
- Transmits up to 1,804' (550 m) with 50/125 MMF cabling
- Transmits up to 722' (220 m) with 62.5/125 MMF cabling
- Complies with MSA standards
- 100% compatible with HP networking hardware
General Information
Name: Tripp Lite N286-01GSX-MLC HP J4858C Compatible SFP Transceiver, 1000Base-SX, DDM, Multimode LC, 850 nm, 1804.46' (550 m)
Category: Tripp Lite by Eaton, Data Comm & Networking, Media Converters & Transceivers, SFP Modules
UPC Code: 037332197443
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-N28601GSX Brand Name Tripp Lite by Eaton Manufacturer Tripp Lite by Eaton Manufacturer Part Number N286-01GSX-MLC Packaged Quantity 1 Product Model N286-01GSX-MLC Product Name HP N286-01GSX-MLC SFP (mini-GBIC) Module Product Type SFP (mini-GBIC)
-
Media Type Supported Optical Fiber
-
Connector Type SFP+ Male Interfaces/Ports Details 1 x LC Duplex 1000BASE-SX Network Total Number of Ports 1
-
Fiber Mode Supported Multi-mode Fiber Optic Cable Standard 50/125 µm, 62.5/125 µm Network Technology 1000Base-SX
-
Ethernet Technology Gigabit Ethernet
-
Application/Usage Data Networking, Optical Network Depth 2.2" Form Factor Hot-pluggable Height 0.3" Weight (Approximate) 0.05 lb Width 0.5"
-
Limited Warranty 3 Year
-
Compatibility 2920 Switch Series - 2920-24G (J9726A#ABA), 2920 Switch Series - 2920-24G-PoE+ (J9727A#ABA), 2920 Switch Series - 2920-48G (J9728A#ABA), 2920 Switch Series - 2920-48G-PoE+ (J9729A#ABA), 5820-14XG-SFP+ 2-slot Switch (JC106A), 5820-24XG-SFP+ Switch (JC102A), 5820AF-24XG Switch (JG219A), HP 1810-8G v2 Smart Desktop Switch - J9802A#ABA, HP 1910 Series Switch - 1910-24G-PoE (365w) - (JE007AS#ABA), HP 1910-24G-PoE (170W) Switch - JE008AS#ABA, HP 2530-24 Switch - J9782A#ABA, HP 2530-24G Switch 2530 Series - J9776A#ABA, HP 2530-24-PoE+ Ethernet Switch - J9779A#ABA, HP 2530-48G Switch - J9775A#ABA, HP 2530-48G-PoE+ Switch - J9772A#ABA, HP 2920-48G-POE+ Switch - J9836A#ABA, HP E5406-44G-PoE+/2XG-SFP+ v2 zl Switch Chassis - J9533A#ABA, HP E5406-44G-PoE+/4G-SFP Switch Chassis - J9539A#ABA, HP Switch 2530 Series - 2530-24G (J9773A#ABA), MSA CompliantHP SWITCHES:, NC373F PCI Express Multifunction Gigabit server adapter - 394793-B21, ProCurve 1400 Series Switch - 1400-24G (J9078A), ProCurve 1400 Series Switch - 1400-8G (J9077A), Procurve 1410/E1410 Series Switch - 1410-16G (J9060A), Procurve 1410/E1410 Series Switch - 1410-24G (J9561A), Procurve 1410/E1410 Series Switch - 1410-8G (J9559A#ABA), ProCurve 1700 Series Switch - 1700-24 (J9080A), ProCurve 1800 Series Switch - 1800-24G (J9028A/B), ProCurve 1810G Series Switch - 1810G-24 (J9450A), Procurve 1810G Series Switch - 1810G-8 (J9449A), ProCurve 1810G Series Switch - V1810-48G (J9660A), ProCurve 2510/E2510 Series Switch - 2510-24 (J9019A/B), ProCurve 2510/E2510 Series Switch - 2510-48 (J9020A), ProCurve 2510/E2510 Series Switch - 2510G-24 (J9279A), ProCurve 2510/E2510 Series Switch - 2510G-48 (J9280A), ProCurve 2520/E2520 Series Switch - 2520-24-PoE (J9138A), ProCurve 2520/E2520 Series Switch - 2520-8-PoE (J9137A), ProCurve 2520/E2520 Series Switch - 2520G-24-PoE (J9299A), ProCurve 2520/E2520 Series Switch - 2520G-8-PoE (J9298A), ProCurve 2530-8 Switch (J9783A), ProCurve 2600/E2600 Series Switch - 2600-8-PWR (J8762A), ProCurve 2600/E2600 Series Switch - 2626 (J4899A/B/C), ProCurve 2600/E2600 Series Switch - 2626-PWR (J8164A), ProCurve 2600/E2600 Series Switch - 2650 (J4900A/B/C), ProCurve 2600/E2600 Series Switch - 2650-PWR (J8165A), ProCurve 2610/E2610 Series Switch - 2610-24 (J9085A), ProCurve 2610/E2610 Series Switch - 2610-24/12PWR (J9086A), ProCurve 2610/E2610 Series Switch - 2610-24-PWR (J9087A), ProCurve 2610/E2610 Series Switch - 2610-48 (J9088A), ProCurve 2610/E2610 Series Switch - 2610-48-PWR (J9089A), Procurve 2615/E2615 Series Switch - 2615-8-PoE (J9565A), ProCurve 2620/E2620 Series Switch - 2620-24 (J9623A), ProCurve 2620/E2620 Series Switch - 2620-24-PoE+ (J9625A#ABA), ProCurve 2620/E2620 Series Switch - 2620-24-PPoE+ (J9624A#ABA), ProCurve 2620/E2620 Series Switch - 2620-48 (J9626A), ProCurve 2620/E2620 Series Switch - 2620-48-PoE+ (J9627A#ABA), ProCurve 2800/E2800 Series Switch - 2824 (J4903A), ProCurve 2800/E2800 Series Switch - 2848 (J4904A) https://www.tripplite.com/shared/literature/Flyer/N286-01GSX-MLC-compatibility-list-en.pdf Environmental Certification RoHS Environmentally Friendly Yes Package Contents - HP N286-01GSX-MLC SFP (mini-GBIC) Module
- Owner's manual
TAA Compliant Yes
