Image of TC-N390X03M8

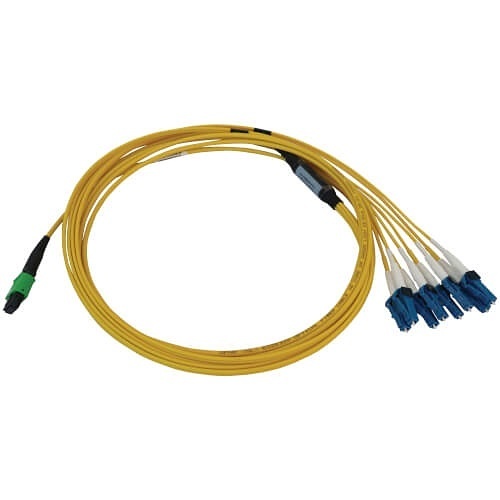

Tripp Lite N390X-03M-8L-AP Fiber Optic Patch Cable, 3-Meter Yellow Singlemode MPO/LC

N390X-03M-8L-AP|TC-N390X03M8

Tripp Lite N390X-03M-8L-AP Fiber Optic Patch Cable, 3-Meter Yellow Singlemode MPO/LC

N390X-03M-8L-AP|TC-N390X03M8

Sign In for Dealer Pricing

Become an ADI Customer
Image of TC-N390X03M8
Tripp Lite by Eaton

Tripp Lite N390X-03M-8L-AP Fiber Optic Patch Cable, 3-Meter Yellow Singlemode MPO/LC

N390X-03M-8L-AP | TC-N390X03M8

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

40/100/400 GbE Cable Supports Higher Bandwidths for High-Density Data Networking
The N390X-03M-8L-AP is a premium multimode fiber optic cable that supports 400 Gb Ethernet speeds for transmitting data and voice signals over short distances. It is designed to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This singlemode 9/125 OS2 cable is an ideal choice for 100 Gb Ethernet applications up to 100 meters (328 feet) at 1550 nm. The breakout cable also eliminates the need for long fan-out cables or long individual duplex cable runs.

Switchable Connectors Allow Easy Polarity Conversions
The switchable LC/UPC duplex ends let you easily switch the fiber polarity without tools or the need to re-terminate the connectors.

100% Tested for Low Insertion Loss and Back Reflection

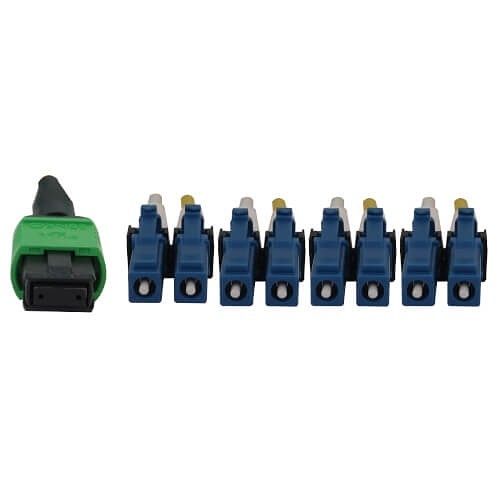

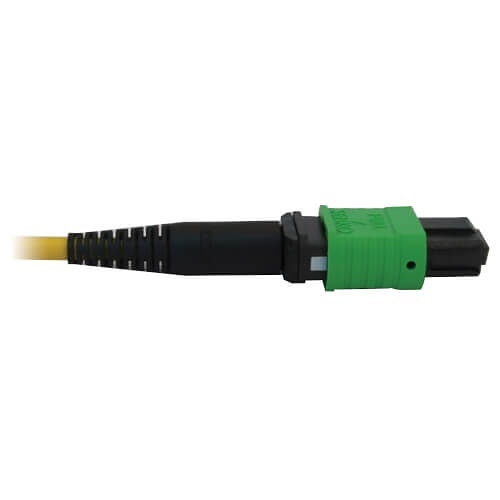

The 12-fiber MTP/MPO APC connector with a green housing helps minimize back reflection with low insertion loss. The connector's slim boot is designed for easy cable management.

Yellow Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.

Main Features

  • Switchable LC connectors allow polarity conversion without tools or re-termination
  • MTP/MPO APC connector minimizes back reflection with low insertion loss
  • Backward compatible with 10/25/40 Gb networks to facilitate future-proofing
  • Yellow LSZH jacket allows fast, easy identification in a crowded switch or patch panel

General Information

Name: Tripp Lite N390X-03M-8L-AP Fiber Optic Patch Cable, 3-Meter Yellow Singlemode MPO/LC
Category: Tripp Lite by Eaton, Wire & Cable, Fiber Optic Cables, Fiber Optic Patch Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources
