Product Overview
40/100 GbE Cable Supports Higher Bandwidths Needed for High-Density Data Networking

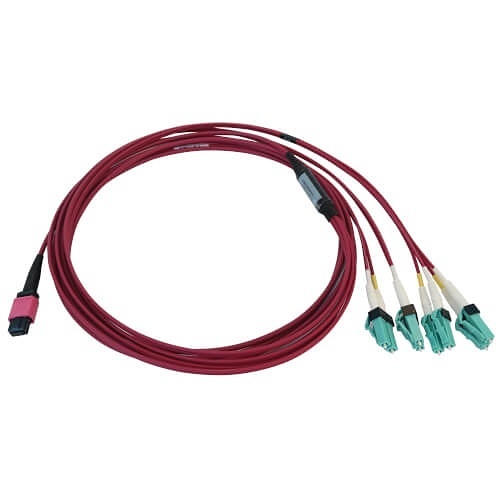

As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths for high-density patching between data center MDFs and IDFs in enterprise installations. This multimode 50/125 OM4 fan-out cable is an ideal choice for 100 Gb Ethernet applications up to 100 meters (328 feet) at 850 nm. It is also backward compatible with 10 Gb and 25 Gb networks, so you can future-proof your current application for an eventual upgrade to 400 Gb.
Switchable LC Connectors Allow Easy Polarity Conversions
The switchable LC/PC duplex ends let you easily switch the fiber polarity without tools or the need to re-terminate the connectors. Use the detachable clip to keep the connectors in place while in use.
Magenta Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has a magenta jacket to identify it as multimode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas. The connectors' slim boots allow easy one-handed installation and removal of the cable.
Main Features
- OM4-rated cable reco mmended for 100 Gb speeds up to 100 meters (at 850 nm)
- Switchable LC connectors allow polarity conversion without tools or re-termination
- Backward compatible with 10/25/40 Gb networks to facilitate future-proofing
- Magenta LSZH jacket allows easy ID in a crowded switch or patch panel
- This product is covered by a Lifetime Limited Warranty
General Information
Specifications
-
ADI Part Number TC-N845X03M8 Brand Name Tripp Lite by Eaton Manufacturer Tripp Lite by Eaton Manufacturer Part Number N845X03M8LMG Packaged Quantity 1 Piece Product Model N845X-03M-8L-MG Product Name N845X-03M-8L-MG Fiber Optic Duplex Trunk Network Cable Product Type Network Cable Â
-

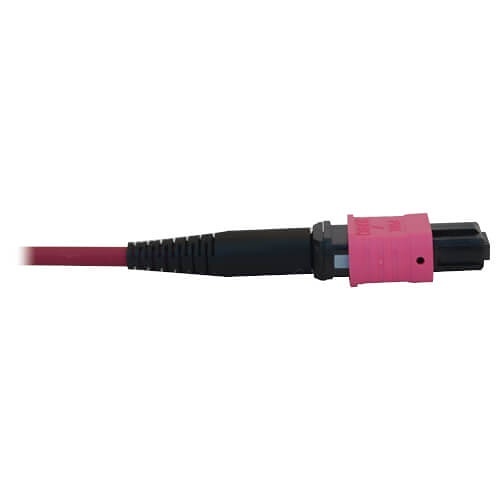

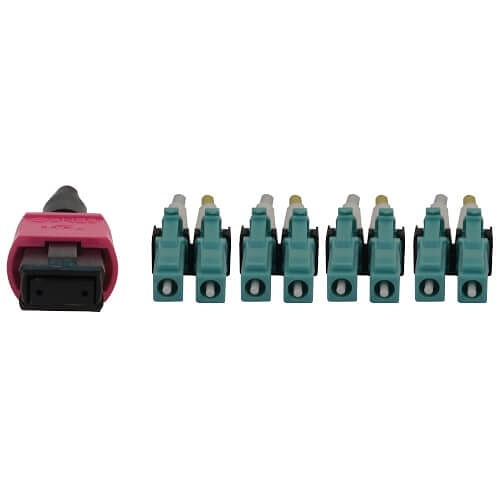

Cable Characteristic Trunk Cable Cable Type Fiber Optic Connector on First End 1 x MTP/MPO Female Network, 12- Connector on Second End LC Male Network Core/Cladding Diameter 50/125 µm Device Supported Network Device, Patch Panel, Switch Fiber Optic Mode Multimode Jacket Material LSZH Â
-
Fiber Count 8 Â
-
Data Transfer Rate 100 Gbit/s Data Transfer Rate (Bps) 13421772800 Â
-
Cable Length 9.84' Cable Length (mm) 3000 Color Magenta Â
-
Limited Warranty Lifetime Â
-
Compatibility For devices and fiber cables Environmental Certification EcoLogo Environmentally Friendly Yes Features Bendable, Polished Connector (PC), Push-Pull Tab, Stranded Â
