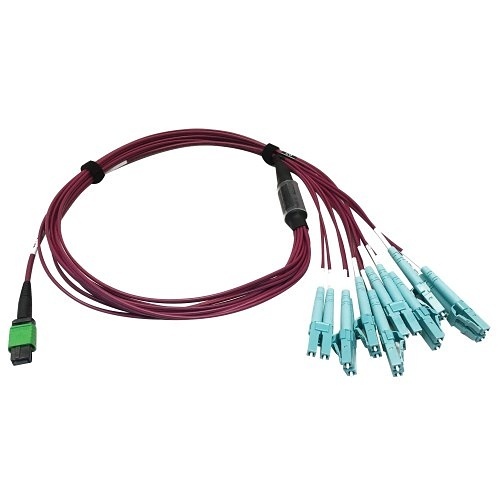

Tripp Lite N846D-01M-16EMG Fiber Optic Patch Cable
Tripp Lite N846D-01M-16EMG Fiber Optic Patch Cable
Tripp Lite N846D-01M-16EMG Fiber Optic Patch Cable
N846D-01M-16EMGÂ |Â TC-N846D01M1
Please sign in to view pricing and availability and to add to cart.
Product Overview
400 GbE Cable Supports Higher Bandwidths Needed for Next-Gen Data and Voice Networking
As the amount of traffic in data networks grows, so does the need for next-generation devices and fiber cables to support much higher bandwidths in cloud services, hyperscale data centers, telecom applications and equipment OEM companies. This multimode 50/125 OM4 breakout cable is an ideal choice for 400G Ethernet applications up to 100 meters (at 850 nm). It has documented insertion loss and back reflection testing on every connector and attenuation loss that meets or exceeds current standards.

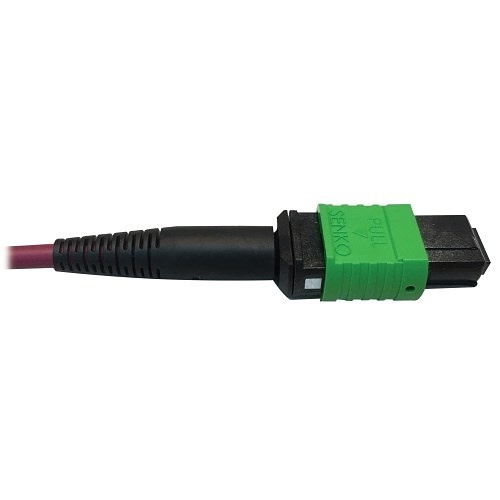

16-Fiber MTP/MPO Connector Designed for the Latest QSFP-DD Transceivers

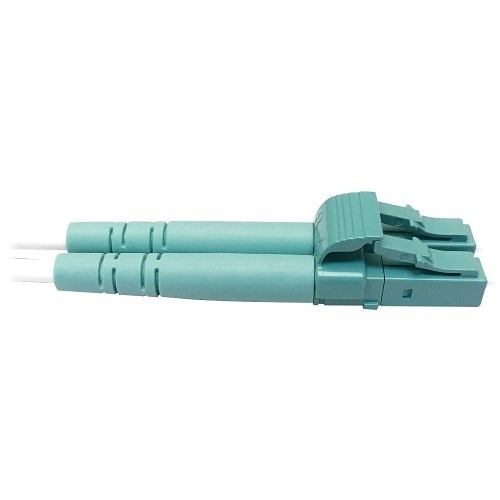

The MPO connector has a wide parallel optical interface for use with the latest 400G QSFP-DD transceivers, making this cable an excellent solution for your high-density network application. The MPO connector is the same size as a standard SC connector, but 12 times denser, allowing vertical stacking in switches or patch panels where space is at a premium. Pull tabs make the cable easy to install or remove with one hand. The LC duplex connectors are recommended for high-density feed-through cassettes with no splicing required.
Magenta Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OM4-rated cable has a magenta jacket, which is easy to identify quickly in a crowded patch panel or switch and helps prevent the cable from becoming accidentally disconnected. The three-millimeter ruggedized plenum-rated jacket has low smoke and flame characteristics, making it suitable for premise applications in ceilings, walls and ducts.
Main Features
- OM4-rated cable reco mmended for 400 Gb speeds up to 100 m (at 850 nm)
- MTP/MPO 16-fiber end designed for next-gen 400G QSFP-DD transceivers
- Connectors tested for low insertion loss and back reflection to ensure top performance
- Plenum rated for horizontal premise applications in air ducts and drop ceilings
- Magenta jacket allows fast, easy identification in a crowded switch or patch panel
- This product is covered by a Lifetime Limited Warranty (coverage details)
General Information
Specifications
-
ADI Part Number TC-N846D01M1 Brand Name Tripp Lite by Eaton Manufacturer Tripp Lite by Eaton Manufacturer Part Number N846D-01M-16EMG Product Model N846D-01M-16EMG Product Name N846D-01M-16EMG Fiber Optic Patch Network Cable Product Type Network Cable Â
-
Cable Characteristic Patch Cable Cable Rating Plenum Cable Type Fiber Optic Connector on First End 1 x MTP/MPO Female Network, 16- Connector on Second End LC Male Network Core/Cladding Diameter 50/125 µm Device Supported Network Device, Network Switch, Patch Panel, Transceiver Fiber Optic Mode Multimode Â
-
Fiber Count 16 Â
-
Data Transfer Rate 400 Gbit/s Data Transfer Rate (Bps) 53687091200 Â
-
Cable Length 3.28' Cable Length (mm) 1000 Color Magenta Color Family Multicolor Â
-
Limited Warranty Lifetime Â
-
Compatibility For horizontal premise applications in air ducts and drop ceilings Environmental Certification REACH, RoHS Environmentally Friendly Yes Features Angled Physical Contact (APC), Rugged, Stranded Â
