Image of TC-P568FA30M

Tripp Lite P568FA-30M-W High-Speed Armored HDMI Fiber Active Optical Cable, 30m, Black

P568FA-30M-W|TC-P568FA30M

Tripp Lite P568FA-30M-W High-Speed Armored HDMI Fiber Active Optical Cable, 30m, Black

P568FA-30M-W|TC-P568FA30M

Sign In for Dealer Pricing

Become an ADI Customer
Image of TC-P568FA30M
Tripp Lite by Eaton

Tripp Lite P568FA-30M-W High-Speed Armored HDMI Fiber Active Optical Cable, 30m, Black

P568FA-30M-W | TC-P568FA30M

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

4K HDMI Cable Connects Industrial and Outdoor Security and Digital Signage Components
This high-speed HDMI cable securely connects HDMI-enabled laptops, tablets, Blu-ray players, game consoles, media servers or security cameras to 4K-ready HDTVs, HD monitors, projectors or home theater receivers. Because the cable uses optical fiber, it can transmit HDMI signals longer distances with no latency or loss. It also eliminates any EMI/RFI line noise that can interfere with your audio/video signal and disrupt the performance of your connected equipment.

Transmits Crystal-Clear 4K Video with HDR and 4:4:4 Color
The P568FA-30M-W is rated up to 18 Gbps and supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified in HDMI 2.0, with Dolby 5.1-channel surround sound. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. The cable also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor, as well as other current HDMI standards, including 3D, 48-bit Deep Color and Dolby 5.1-channel surround sound.

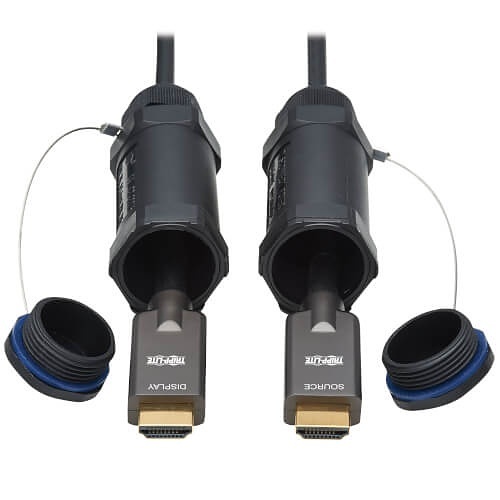

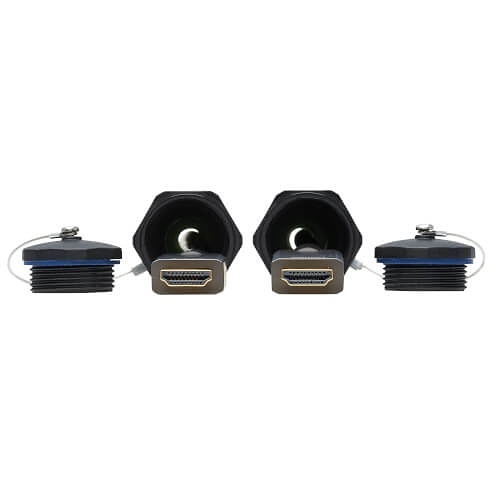

IP68-Rated Ends Resist Dust and Water
Both HDMI connectors are protected by a molded, dust-resistant, IP68-rated watertight hood and caps. The IP68 rating means the connectors can endure immersion in 1.5 meters of water for up to 60 minutes with no damage or decline in performance. The P568FA-30M-W is ideal for industrial areas, such as factories and warehouses, and unforgiving outdoor installations, including malls, bus stops and stadiums, where dust, debris and water are present.

Armored Cable Jacket Ideal for Areas Where Extra Protection Is Needed
The outer thermoplastic polyurethane (TPU) jacket offers UV protection for applications in which the cable is installed outdoors. The crush-resistant stainless steel armored tube protects the cabling against excessive force. The DuPont Kevlar resists heat and provides tensile strength to the cable when it is being bent or pulled. This type of cable construction provides ideal protection in outdoor applications where the cable is exposed to crushing, cuts and abrasion.

Advanced Fiber Cable Is Easier to Install than Copper
Because the fiber cable is slimmer and more flexible than standard copper HDMI cables, the P568FA-30M-W is easier to install around corners and in hard-to-reach spaces behind equipment. It draws power from the connected device, so no external power supply is needed to transmit the HDMI signal across the longer distances unique to fiber optic cabling.

Main Features

  • Supports 4K at 60 Hz video resolutions (4:4:4) as specified in HDMI 2.0
  • Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
  • Fiber optic strands transmit audio/video over longer distances than standard copper
  • IP68-rated ends resist dust and endure immersion in 1.5 m of water up to 60 min.
  • Armored cable with TPU jacket for outdoor use resists crushing, cutting and abrasions
  • 3-year limited warranty

General Information

Name: Tripp Lite P568FA-30M-W High-Speed Armored HDMI Fiber Active Optical Cable, 30m, Black
Category: Tripp Lite by Eaton, Pro AV, Commercial Connector Cables, Pro HDMI Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.

Specifications

Product Documents and Resources
