Tripp Lite PDUH20-ISO PDU 1.92kW 120V Single-Phase Basic with ISOBAR Surge Protection, 3840 Joules, 14 Outlets, L5-20P Input
Tripp Lite PDUH20-ISO PDU 1.92kW 120V Single-Phase Basic with ISOBAR Surge Protection, 3840 Joules, 14 Outlets, L5-20P Input
Tripp Lite PDUH20-ISO PDU 1.92kW 120V Single-Phase Basic with ISOBAR Surge Protection, 3840 Joules, 14 Outlets, L5-20P Input
PDUH20-ISOÂ |Â TC-PDUH20ISO
Please sign in to view pricing and availability and to add to cart.
Product Overview
Single-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads

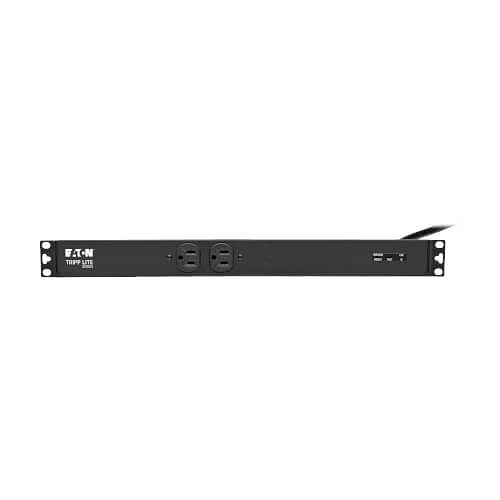

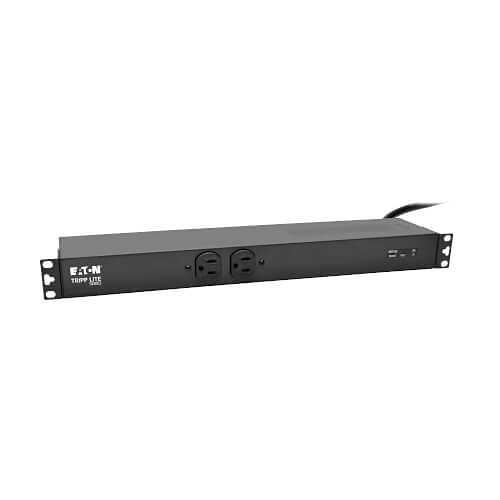

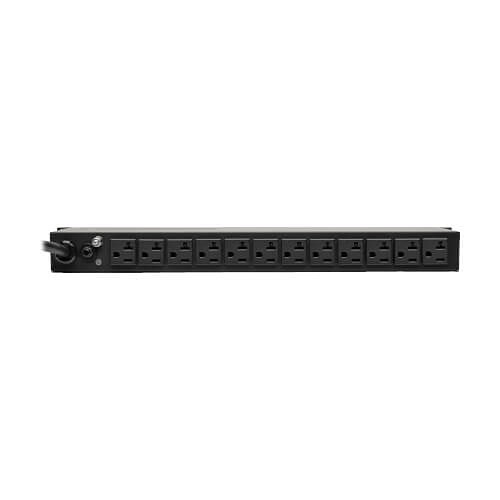

This basic PDU is an ideal no-frills unit for telecom, security, audio/video and a wide variety of general portable and stationary rack-mount applications. Recommended for network-grade IT environments, the PDUH20-ISO features 12 NEMA 5-20R outlets in the rear and two 5-15R outlets in front. A 15-foot cord with L5-20P input plug (and included 5-20P adapter) connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
3840 Joules Fight Back Against Unexpected Power Surges
Protecting your valuable electronics is ISOBAR® network-grade AC surge and noise suppression. A 3840-joule surge protection rating defends your sensitive electronic components against even the strongest power surges, spikes and line noise. The PDUH20-ISO covers full normal (H-N) and common (N-G/H-G) protection modes. A green LED confirms your connected equipment is protected.
Up-to-Date Safety Features Protect Your Vital Equipment
The switchless design helps prevent an accidental shutdown, which could lead to costly downtime. A 20A circuit breaker protects connected components from dangerous overloads. A red LED signals a suppressor or wiring fault.
Versatile Installation Options Give You Plenty of Choices
The reversible all-metal housing comes with mounting brackets for installation in 1U of space or 0U vertical mounting in an EIA-standard 19-inch rack. You can also reorient the brackets for permanent mounting under a counter or on a wall with user-supplied hardware.
Main Features
- Ideal no-frills PDU for telecom, security, A/V and other small network applications
- 3840 joules protect your valuable electronics against dangerous surges and spikes
- 12 NEMA 5-20R and 2 5-15R outlets distribute AC power to connected equipment
- 15 ft. cord with L5-20P input (and 5-20P adapter) connects to AC power source
- Flexible installation options include 1U and 0U rack, under counter and on wall
- 2-year limited warranty
General Information
Specifications
-
ADI Part Number TC-PDUH20ISO Brand Name Tripp Lite by Eaton Manufacturer Tripp Lite by Eaton Manufacturer Part Number PDUH20-ISO Product Model PDUH20-ISO Product Name PDUH20-ISO 14-Outlets PDU Product Type PDU Weight (Approximate) (g) 2086.525 Â
-
Output Voltage 100V AC, 120V AC, 127V AC PDU Type Basic Phase Single Phase Power Rating (Watt) 2030 W Power Rating (Watt) (W) 2030 Receptacle Detail 12 x NEMA 5-20R, 2 x NEMA 5-15R Receptacle Type NEMA 5-15R, NEMA 5-20R Â
-
Depth 4.5" Depth (mm) 114.300 Height 1.8" Height (mm) 44.450 Mounting Orientation Horizontal/Vertical Rack Height 1U Weight (Approximate) 4.60 lb Width 17.5" Width (mm) 444.500 Â
-
Input Current 20 A Input Current (A) 20 Input Voltage 120V AC Plug/Connector Type NEMA 5-20P, NEMA L5-20P Â
-
Mount Type Rack Mount, Wall Mount Protection Type Accidental Power Shutdown, Circuit Protection, Noise, Overload Protection, Spike Protection, Surge Protection Â
-
Limited Warranty 2 Year Â
-
Environmentally Friendly Yes Package Contents - PDUH20-ISO 14-Outlets PDU
- NEMA 5-20P Input Adapter
- Rack-Mounting Hardware
- Owner's Manual
