Tripp Lite SMART2200RM2U SmartPro Series Line-Interactive Sine Wave UPS, 2200VA/1920W, 2U RMS
SMART2200RM2U|TC-SMT22002U
Tripp Lite SMART2200RM2U SmartPro Series Line-Interactive Sine Wave UPS, 2200VA/1920W, 2U RMS
SMART2200RM2U|TC-SMT22002U
Tripp Lite by Eaton
Tripp Lite SMART2200RM2U SmartPro Series Line-Interactive Sine Wave UPS, 2200VA/1920W, 2U RMS
SMART2200RM2UÂ |Â TC-SMT22002U
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Main Features
- 2.2kVA / 2200VA / 1920W line interactive 2U rack/tower UPS, Sine Wave
- 120V output, Corrects brownouts and overvoltages from 83V to 145V
- 0.9 Power Factor, Interactive LCD interface
- 96% line-mode efficiency, 2 switched load banks
- USB, RS232, EPO and slot for Network Card options

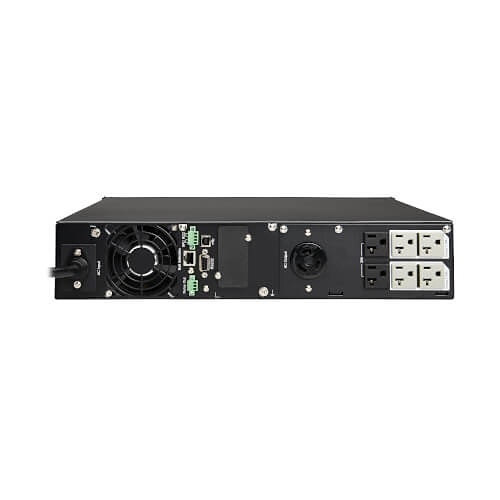

- 120V NEMA 5-20P input, 4 NEMA 5-15R & 4 NEMA 5-15/20R outlets
- To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later
General Information
Name: Tripp Lite SMART2200RM2U SmartPro Series Line-Interactive Sine Wave UPS, 2200VA/1920W, 2U RMS
Category: Tripp Lite by Eaton, Batteries & Power Supplies, Data Comm & Networking, Power Management, Power Products, UPS, UPS
UPC Code: 037332150622
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SMT22002U Brand Name Tripp Lite by Eaton Manufacturer Tripp Lite by Eaton Manufacturer Part Number SMART2200RM2U Packaged Quantity 1 Each Product Line SmartPro Product Model SMART2200RM2U Product Name SMART2200RM2U UPS System Product Type Line-interactive UPS Weight (Approximate) (g) 29029.912 Â
-
AVR Yes Backup/Run Time (Full Load) 5 Minute Backup/Run Time (Full Load) (Second) 300 Backup/Run Time (Half Load) 13 Minute Backup/Run Time (Half Load) (Second) 780 EMI/RFI Noise Filter Yes Energy Saving Greater than 95% efficiency - GREEN UPS; Individually controllable load banks Hot Swappable Yes Load Capacity (VA) 1950 VA Output Voltage 110V AC, 120V AC Output Voltage (V AC) 110, 120 Overload Protection Yes Phase Single Phase Receptacle Detail 4 x NEMA 5-15/20R, 4 x NEMA 5-15R Receptacle Type NEMA 5-15/20R, NEMA 5-15R Transfer Time 4 ms Transfer Time (Second) 0.004 USB (HID Compliant) Port Yes Â
-
Battery Characteristics Valve-regulated Battery Chemistry Lead Acid DC System Voltage 48 V DC Replaceable Battery Yes Typical Battery Recharge Time 4.50-Hour Typical Battery Recharge Time (Second) 16200 Â
-
Output Voltage (V) 110, 120 Surge Energy Rating (J) 380 Â
-
Status Indicators 5 Front Panel Leds:
- Green Power Led
- Green Voltage Correction Led
- 3 Color Battery Charge Led
- 3 Color Output Load Led
- Red Battery Warning Led
Â
-
Maximum Operating Elevation 10000 ft Maximum Operating Elevation (mm) 3048000 Maximum Operating Temperature 104°F (40°C) Maximum Operating Temperature (°F) 104 Maximum Storage Elevation 32808 ft Maximum Storage Elevation (mm) 9999878.4 Â
-
EPO Port Yes Serial Port Yes Â
-
Alarm Low Battery, On Battery, Overload Network Management SNMP Manageable Â
-
Application/Usage Network Equipment Depth 19" Depth (mm) 482.6 Form Factor Rack Mount Height 3.5" Height (mm) 88.9 Rack Height 2U Weight (Approximate) 64 lb Width 17.5" Width (mm) 444.5 Â
-
Input Frequency 60 Hz Input Frequency (Hz) 60.000 Input Voltage 110V AC Input Voltage (V AC) 110 Input Voltage Range 70 V AC - 153 V AC Output Frequency 60 Hz Plug/Connector Type NEMA 5-20P Surge Energy Rating 380 J Waveform Type Sine Wave Â
-
Load Capacity (VA) (W) 2200VA|1920W Load Capacity (W) 2200.000 Â
-
Software Included PowerAlert Software Â
-
Additional Warranty Information 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty. Limited Warranty 2-year Â
-
Energy Star Yes Environmental Certification RoHS Environmentally Friendly Yes Package Contents - SMART2200RM2U UPS System
- PowerAlert Software CD
- USB Cable
- Serial Cable
- EPO Cable
- Owner's Manual with Warranty Information
TAA Compliant Yes Â
