Product Overview
Space-Saving Wall-Mount Enclosure Houses Rack Equipment up to 28 in. Deep

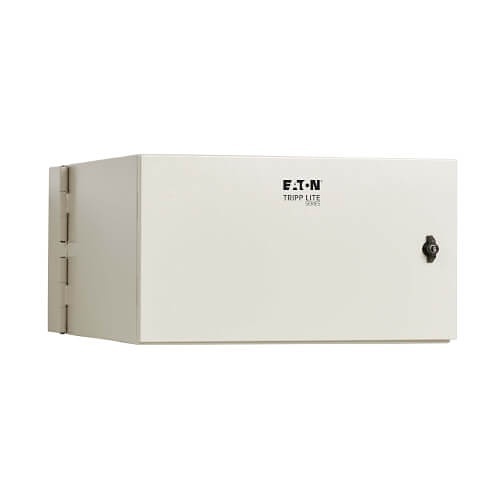

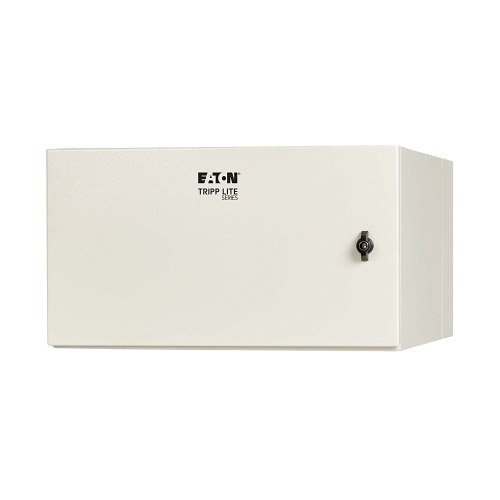

This SmartRack® industrial enclosure is designed to house 6U of 19-inch rack-mount equipment, such as network switches and patch panels. Constructed from steel with a durable gray powder-coated finish, the SRN4G6US has a maximum load capacity of 200 pounds (90.7 kilograms) and is suitable for indoor and outdoor applications.
NEMA 4 Enclosure Designed for Protection Against Harsh Elements
The SRN4G6US protects its contents against the ingress of water (including rain, sleet, snow, splashing water and hose-directed water), solid foreign objects (including falling dirt and windblown dust) and even ice forming on the outside of the enclosure. It is ideal for a multitude of industrial sites, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs, warehouses and other areas where you need to keep sensitive equipment secure, organized and out of the way.
Locks Securely to Help Prevent Theft, Damage and Tampering
The fully welded steel housing locks securely with the included keys to protect its contents against theft, tampering, dust and other contaminants. The enclosure swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. Data and power cables may be routed through a bottom conduit cutout.
Easy Enclosure and Equipment Installation
? This 6U industrial enclosure comes fully assembled and ready to mount to the wall with user-supplied hardware. Front and rear mounting rails adjust independently to accommodate equipment up to 28 inches deep. Hardware for mounting equipment inside the enclosure is included.
Main Features
- Enclosed, sealed metal housing protects 6U of rack equipment up to 28" deep
- NEMA 4 enclosure provides protection against water, ice, snow and other moisture
- Door locks securely with included keys to help prevent damage, tampering or theft
- Enclosure swings away from the wall on hinge for easy back-door access
- 5-year limited warranty
General Information
Specifications
-
ADI Part Number TC-SRN4G6US Brand Name Tripp Lite by Eaton Manufacturer Tripp Lite by Eaton Manufacturer Part Number SRN4G6US Product Line SmartRack Product Model SRN4G6US Product Name SmartRack SRN4G6US Rack Mount Enclosure Product Type Rack Mount Enclosure Weight (Approximate) (g) 41690 Â
-
Application/Usage DVR, Patch Panel, PDU, Switch, UPS Color Family Gray Depth 30" Depth (mm) 763.2 Form Factor Wall Mount Height 13.6" Height (mm) 344.9 Product Color Gray Product Material Metal, Powder Coated Steel Weight (Approximate) 91.91 lb Width 24" Width (mm) 609.6 Â
-
Limited Warranty 5 Year Â
-
Environmental Certification REACH, RoHS Environmentally Friendly Yes Features Anti-theft, Damage Resistant, Debris Resistant, Dust Resisitant, Key Lock, Lockable, Lockable Door, Moisture Resistant, Rain Resistant, Snow Resistant, Splash Resistant, Tamper Resistant, Water Resistant Package Contents - SmartRack SRN4G6US Rack Mount Enclosure
- 24 x 10-32 screws
- 24 x M6 Washers
- 4 x LDPE Sheet Metal Plugs
- 4 x M10 Foam Washers
- 2 x Keys
- Owner's Manual
