AXIS TQ1601-E Mounting Box for IP Camera, Wall Mount, Cable Conduit Adapter
AXIS TQ1601-E Mounting Box for IP Camera, Wall Mount, Cable Conduit Adapter
AXIS TQ1601-E Mounting Box for IP Camera, Wall Mount, Cable Conduit Adapter
TQ1601-EÂ |Â Z4-02336001
Please sign in to view pricing and availability and to add to cart.
Product Overview

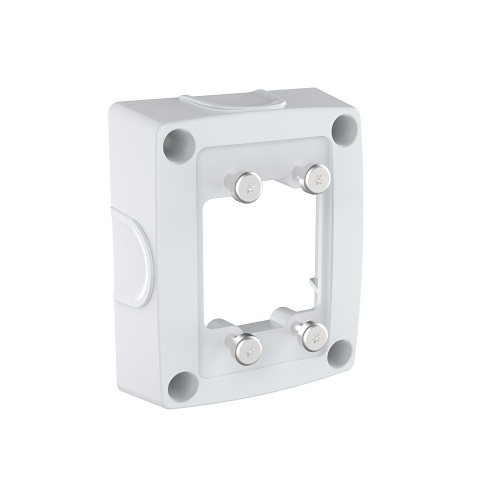

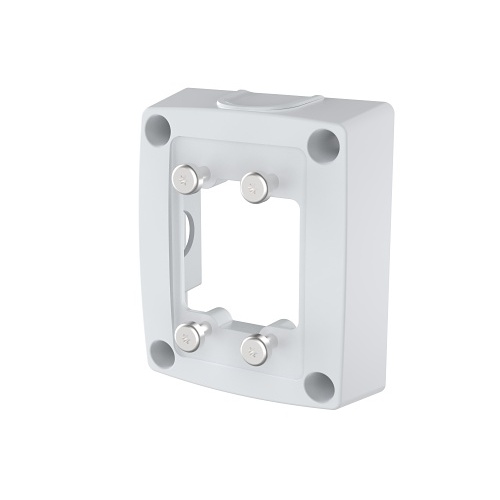

AXIS TQ1601-E Conduit Back Box is an aluminum mount with a coating that alleviates corrosion. Its design with long screws and a washer helps dissipate vibrations, and the top/bottom and side conduit entries make installation easier. When used together with AXIS T94Q01A Wall Mount, the Ethernet cable can be routed through or along the wall (from left or right). The side and top/bottom holes are compatible with 3/4" conduits, M25 cable protection products, and with AXIS Conduit Interface (ACI) adapter range (NPS/U-shape). AXIS TQ1601-E can also be used to cover a single gang junction box.
Main Features
- Aluminum
- Coating in corrosion resilient material
- Designed to dissipate vibrations
- Conduit entries for easy installation
- Compatible with AXIS ACI Adapters ¾’’
General Information
Specifications
-
ADI Part Number Z4-02336001 Brand Name Axis Communications Manufacturer Axis Communications Manufacturer Part Number 02336-001 Product Line T Product Model TQ1601-E Product Name TQ1601-E Conduit Back Box Product Series 1601 Product Type Mounting Box Â
-
Device Supported Cable Conduit Adapter, Network Camera, Wall Mount Â
-
ADI Part Number Replaces Z4-5505141 Model Number Replaces T94R01P Â
-
Application/Usage Outdoor, Wall Color White Material Aluminum Â
-
Compatibility Axis Network Cameras:
- M1135-E
- M1137-E
- P1375-E
- P1377-LE
- P1378-LE
- Q1615-LE Mk III
- Q1645-LE
- Q1647-LE
Features Corrosion Resistant, Vibration Resistant Â
