Product Overview
Overview

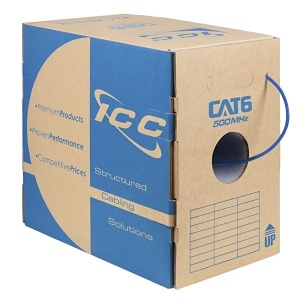

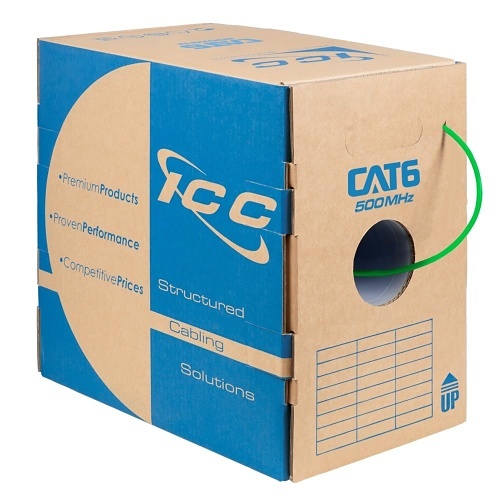

ICC's Category 6 500MHz CMR UTP solid cables are manufactured based on the TIA 568-C.2 industry standard and is UL and cUL listed and verified. Available in spools of 1000 feet in a convenient pull box dispensing carton. Constructed with sequential footage markings on the outer jacket for easy to measure usage tracking. These cables offer a competitive solution designed to provide the ultimate performance necessary for today's demanding voice, data, video, and security applications in commercial and residential installations.
Features
? TIA 568-C.2 Category 6
? UL Type CMR for Riser
? UL 444
Specification
? 10 Base-T
? 100Base-T (IEEE 802.3u)
? 1000 Base-T
? High Definition Video
? Digital Broadcast Video/IP Video/VoIP
? ISDN/ADSL
? 155Mbps ATM
? Conductor: Solid Bare Copper
? Insulation: FRPE
? Jacket: FR-PVC
? Component: 4 twisted pair
? Insulation Dia. (in): 0.039
? Outer Dia. (in): 0.212"
? Sequential footage marking for easy usage tracking.
? Packaged in a pull box.
? Wired pairs are vividly colored for quick identification
? Temperature Rating (°F)
? Installation temperature: 32 to 140 Fahrenheit (°F)
? Operating temperature: -4 to 167 Fahrenheit (°F)
Main Features
- Allows you to access all of the networked data, swiftly and securely
- Features Category 6 cable type for optimal performance and better dependability
- Flame Retardant feature for better usability and increased efficiency
- Network Device device supported according to your requirements with maximum productivity
General Information
Specifications
-
ADI Part Number H2-CABR6VGN Brand Name ICC Manufacturer ICC Manufacturer Part Number ICCABR6VGN Packaged Quantity Box Product Name CAT 6, 500 UTP SLD CBL, 23G 4P CMR 1K, GN Product Type Network Cable Â
-
American Wire Gauge 23AWG Boot Type Molded Cable Rating Plenum Cable Type Category 6 Conductor Count 4 Device Supported Network Device Frequency / Bandwidth Rating 550 MHz Jacket Material FR-PVC, PVC Number of Conductors 8 Number of Pairs 4 Shielding No Solid or Stranded Solid Â
-
Data Transfer Rate 1 Gbit/s Â
-
Cable Length 1000' Color Green Insulation Material FEP Material PVC Package Type Bulk Product Color Blue, Brown, Green, Orange, White/Blue, White/Brown, White/Green, White/Orange Product Material Bare Copper, Polyester Â
-
Limited Warranty 3 Year Â
-
Environmental Certification RoHS Environmentally Friendly Yes Features Attenuation to Crosstalk Ratio (ACR), Minimized Near-End Crosstalk (NEXT), Power Sum Attenuation to Crosstalk Ratio (PSACR), Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF), Power-sum Near End Crosstalk (PSNEXT) Â
