Tripp Lite SM1000RM1UTAA TAA SmartPro 120V 1KVA 800W Line-Interactive Sine Wave UPS, 1U Rack/Vertical, Network Card Options, USB, Outlets
SM1000RM1UTAA|TC-SM1000TAA
Rack Height: 1U
Tripp Lite SM1000RM1UTAA TAA SmartPro 120V 1KVA 800W Line-Interactive Sine Wave UPS, 1U Rack/Vertical, Network Card Options, USB, Outlets
SM1000RM1UTAA|TC-SM1000TAA
Rack Height: 1U
Tripp Lite by Eaton
Tripp Lite SM1000RM1UTAA TAA SmartPro 120V 1KVA 800W Line-Interactive Sine Wave UPS, 1U Rack/Vertical, Network Card Options, USB, Outlets
SM1000RM1UTAAÂ |Â TC-SM1000TAA
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

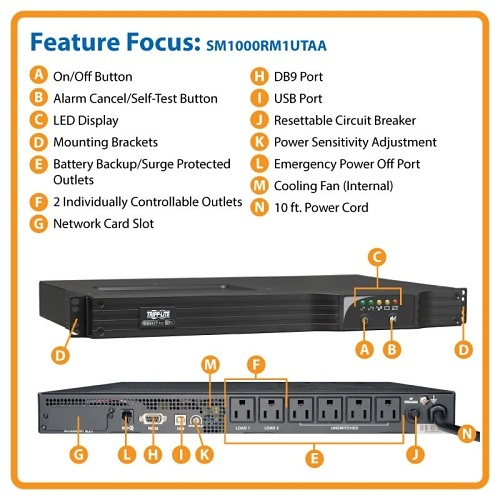

Main Features
- Corrects under and overvoltages from 83V to 147V

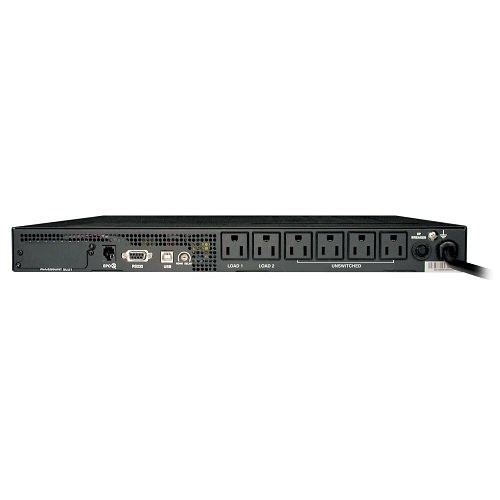

- 6 NEMA 5-15R outlets—2 switchable via network interface
- Network power management and control capability
- 99% efficiency rating saves energy and operating cost
- 14 min. runtime at half load; 4 min. at full load
- 2-year limited warranty,
General Information
Name: Tripp Lite SM1000RM1UTAA TAA SmartPro 120V 1KVA 800W Line-Interactive Sine Wave UPS, 1U Rack/Vertical, Network Card Options, USB, Outlets
Category: Tripp Lite by Eaton, Batteries & Power Supplies, Data Comm & Networking, Power Management, Power Products, UPS, UPS
UPC Code: 037332184184
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-SM1000TAA Brand Name Tripp Lite by Eaton Manufacturer Tripp Lite by Eaton Manufacturer Part Number SM1000RM1UTAA Packaged Quantity 1 Product Line SmartPro Product Model SM1000RM1UTAA Product Name SmartPro SM1000RM1UTAA 1000VA Tower/Rack Mountable UPS Product Type Line-interactive UPS Weight (Approximate) (g) 14514.956 Â
-
Backup/Run Time (Full Load) 4 Minute Backup/Run Time (Full Load) (Second) 240 Backup/Run Time (Half Load) 14 Minute Backup/Run Time (Half Load) (Second) 840 Hot Swappable Yes Load Capacity (VA) 1000 VA Output Voltage 120V AC Output Voltage (V AC) 120 Receptacle Detail 6 x NEMA 5-15R Receptacle Type NEMA 5-15R Â
-
Output Voltage (V) 120 Surge Energy Rating (J) 450 Â
-
Status Indicators - Line power status
- Battery power status
- Overload status
- Voltage regulation status
- Battery low/replace status
Â
-
Maximum Operating Temperature 104°F (40°C) Maximum Operating Temperature (°F) 104 Â
-
Serial Port Yes Â
-
Alarm Low Battery, Overload, Power Failure Â
-
Depth 16.8" Depth (mm) 426.72 Form Factor Rack Mount, Tower Height 1.7" Height (mm) 43.18 Rack Height 1U Weight (Approximate) 32 lb Width 17.5" Width (mm) 444.5 Â
-
Input Voltage 120V AC Input Voltage (V AC) 120 Plug/Connector Type NEMA 5-15P Surge Energy Rating 450 J Waveform Type Sine Wave Â
-
Load Capacity (VA) (W) 1000VA|800W Load Capacity (W) 1000.000 Â
-
Software Included PowerAlert Monitoring Â
-
Limited Warranty 2-year Â
-

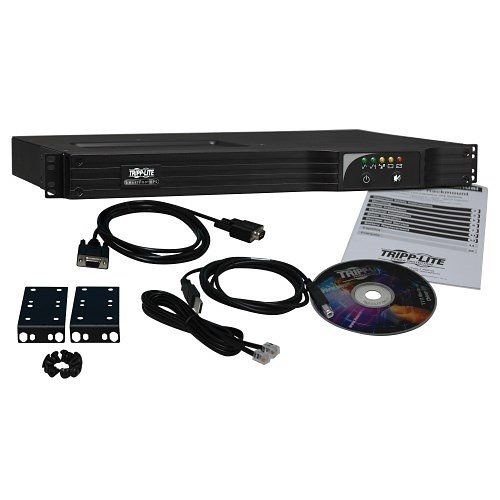

Environmental Certification RoHS Environmentally Friendly Yes Package Contents - SmartPro SM1000RM1UTAA 1000VA Tower/Rack Mountable UPS
- Mounting hardware
- Cabling for USB & DB9 Monitoring and EPO Switching
- Instruction Manual
TAA Compliant Yes Â
